The Vetus OILW White Oil Pressure Gauge (12/24V) provides precise monitoring of engine oil pressure with a calibrated 0–8 kg/cm² (0–110 psi) scale. Designed for a standard 52 mm cut-out and 63 mm overall diameter, it features dimmable yellow or red LED illumination, a double-glazed lens to minimise condensation, and improved measurement accuracy. The gauge is supplied with both black and chrome bezels and requires a compatible M10 x 1K oil pressure sender for operation.
- Description
- Ask a Question
-

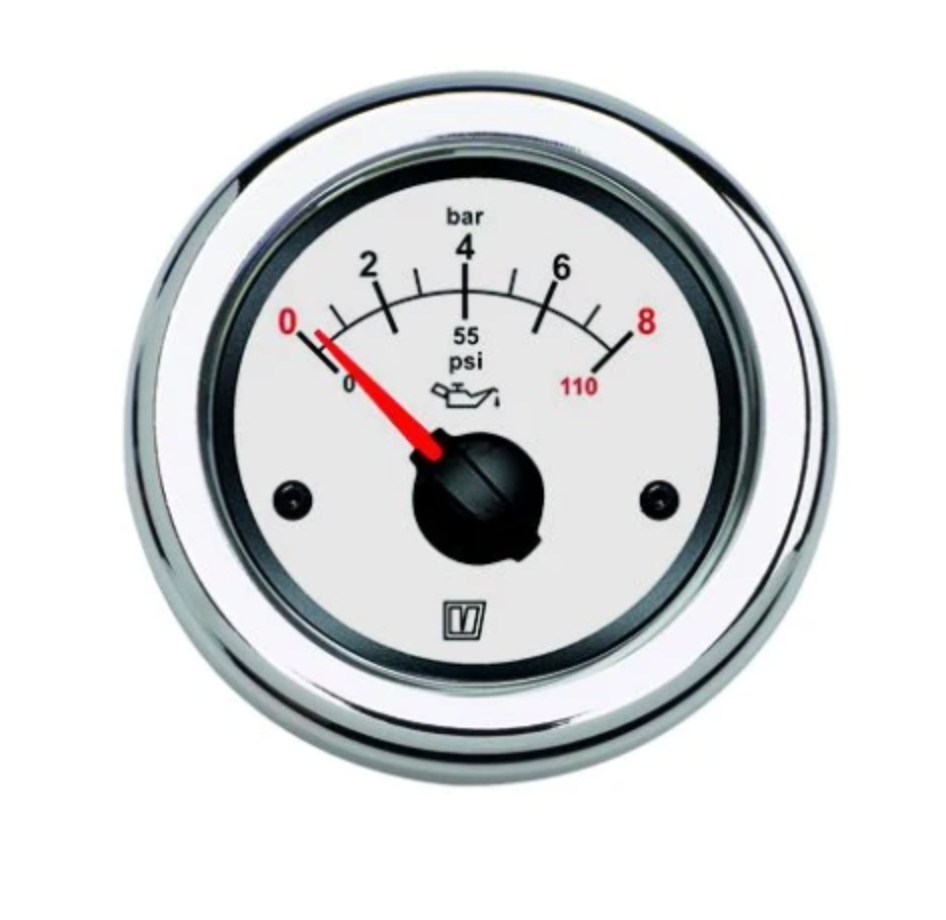

Vetus OILW White Oil Pressure Gauge, 12/24V, 0–8 kg/cm², 52 mm Cut-out
The Vetus OILW white oil pressure gauge provides accurate real-time monitoring of engine lubrication pressure, helping to protect engine components and ensure long-term reliability. With a calibrated scale of 0–8 kg/cm² (0–110 psi), it offers precise readings suitable for a wide range of marine engines. This model belongs to the updated Vetus gauge series, featuring enhanced accuracy and redesigned higher-quality bezels.
The translucent white dial is illuminated from below by dimmable LEDs, offering a choice between yellow and red illumination for optimal visibility under any lighting conditions. A double-glazed front prevents condensation build-up, improving clarity and extending service life. Designed for a 52 mm cut-out and 63 mm overall diameter, the instrument ensures compatibility with standard dashboard layouts. Both a black bezel and a premium chrome bezel are included to match different installation styles. A compatible oil pressure sender is required, such as the Vetus OILS (single-pole, M10 x 1K) or the Vetus OILS2 (double-pole, M10 x 1K).
Main Features
- Accurate monitoring of engine oil pressure
- Calibrated scale: 0–8 kg/cm² / 0–110 psi
- Updated Vetus internal mechanism for increased accuracy
- Translucent white dial with dimmable LED illumination
- Select between yellow or red backlighting
- Double-glazed lens to minimise condensation
- Supplied with black and chrome bezels
- Fits standard 52 mm dashboard cut-out
- 63 mm overall diameter
- Watertight construction suitable for marine applications
- Backward compatible with previous Vetus gauge versions
Technical Specifications
Dial Colour White Voltage 12/24 V DC Scale Range 0–8 kg/cm² / 0–110 psi Purpose Oil pressure gauge Cut-out Diameter 52 mm Overall Diameter 63 mm Illumination Dimmable LED, yellow or red Ring Colour Black & Chrome Watertight Yes Compatible Senders Vetus OILS (single pole, M10 x 1K), Vetus OILS2 (double pole, M10 x 1K) Diameter (inches) 2 31/64 Cut-out Diameter (inches) 2 3/63
Product Highlights
- Enhanced precision and upgraded bezel design
- Clear, fog-free visibility due to double-glazed construction
- Standardised dimensions for effortless retrofit installations
- Ideal for a wide range of marine engine applications
-
