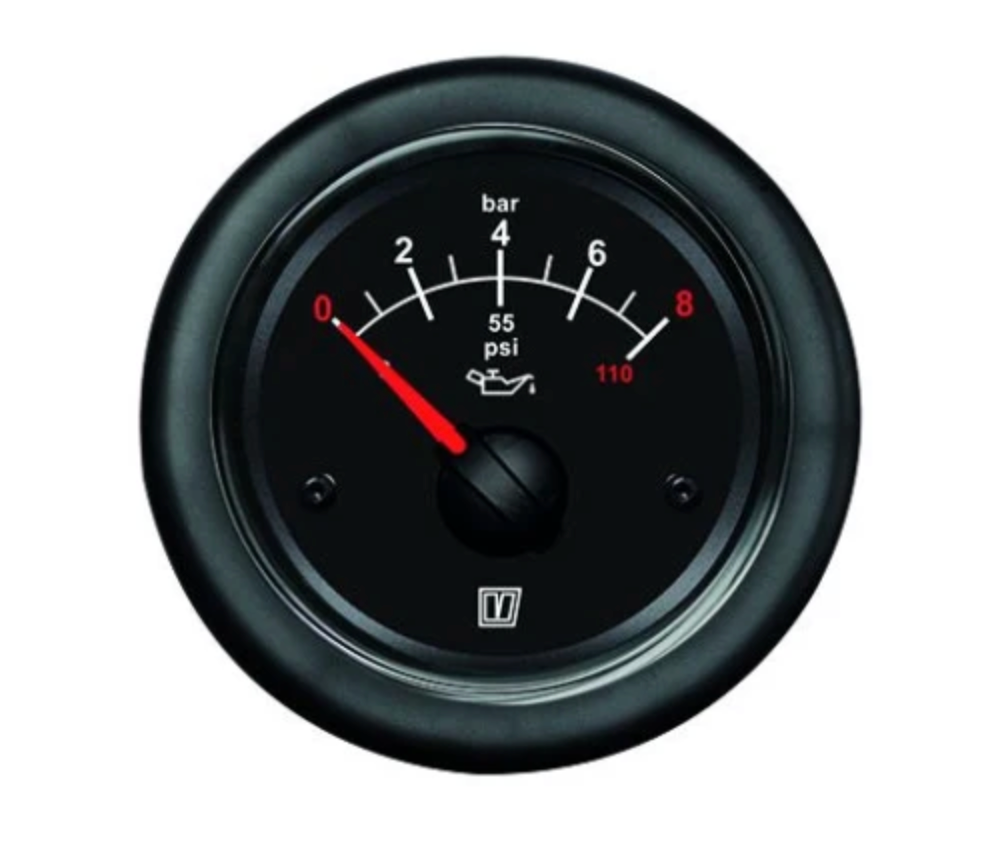

The Vetus OILB Black Oil Pressure Gauge (12/24V) provides precise monitoring of engine oil pressure with a scale of 0–8 kg/cm² (0–110 psi). Designed for a standard 52 mm cut-out and a 63 mm overall diameter, it features improved accuracy, dimmable LED illumination in yellow or red, and a double-glazed lens that minimises condensation. The instrument is supplied with black and chrome bezels and requires a compatible oil pressure sender for proper operation.
- Description
- Ask a Question
-
Vetus OILB Black Oil Pressure Gauge, 12/24V, 0–8 kg/cm², 52 mm Cut-out
The Vetus OILB black oil pressure gauge offers accurate real-time monitoring of engine lubrication pressure, ensuring safe and efficient operation of marine engines. With a calibrated scale of 0–8 kg/cm² (0–110 psi), it is suitable for a wide range of engine configurations requiring reliable oil pressure feedback. As part of the updated Vetus instrument line, this gauge delivers increased accuracy, improved bezel quality, and enhanced durability through a double-glazed lens that significantly reduces condensation.
The translucent black dial is illuminated from below by dimmable LEDs with selectable yellow or red illumination, ensuring optimal readability in all lighting conditions. The instrument fits a standard 52 mm cut-out and has a 63 mm overall diameter, making it compatible with most dashboard layouts. Both a solid black bezel and a premium chrome bezel are included for flexible installation. A compatible oil pressure sender is required for operation, with available options including the Vetus OILS single-pole sender (M10 x 1K) and OILS2 double-pole sender (M10 x 1K).
Main Features
- Accurate monitoring of engine oil pressure
- Scale calibration: 0–8 kg/cm² / 0–110 psi
- Improved accuracy with upgraded Vetus gauge mechanisms
- Translucent black dial with dimmable LED backlighting
- Selectable yellow or red LED illumination
- Double-glazed lens reduces condensation
- Supplied with black and chrome bezels
- Fits standard 52 mm dashboard cut-out
- 63 mm overall diameter
- Requires compatible oil pressure sender (not included)
- Watertight construction for marine use
- Backward compatible with previous Vetus gauges
Technical Specifications
Dial Colour Black Voltage 12/24 V DC Scale Range 0–8 kg/cm² / 0–110 psi Purpose Oil pressure gauge Cut-out Diameter 52 mm Overall Diameter 63 mm Illumination Dimmable LED, yellow or red Ring Colour Black & Chrome Watertight Yes Compatible Senders Vetus OILS (single pole, M10 x 1K), Vetus OILS2 (double pole, M10 x 1K) Diameter (inches) 2 31/64 Cut-out Diameter (inches) 2 3/63
Product Highlights
- Enhanced precision and readability thanks to updated Vetus design
- Durable double glazing prevents fogging and extends service life
- Standardised dimensions ensure easy retrofit installation
- Suitable for a wide range of marine engines
-
