The Vetus OILN Cream Oil Pressure Gauge (12/24V) provides precise monitoring of engine oil pressure with a calibrated range of 0–8 kg/cm² (0–110 psi). Designed to fit a 52 mm cut-out with a 63 mm overall diameter, it features dimmable LED illumination in yellow or red, a double-glazed lens to reduce condensation, and improved high-accuracy components. Supplied with both black and chrome bezels, it requires a compatible M10 x 1K oil pressure sender for proper operation.
- Description
- Ask a Question
-

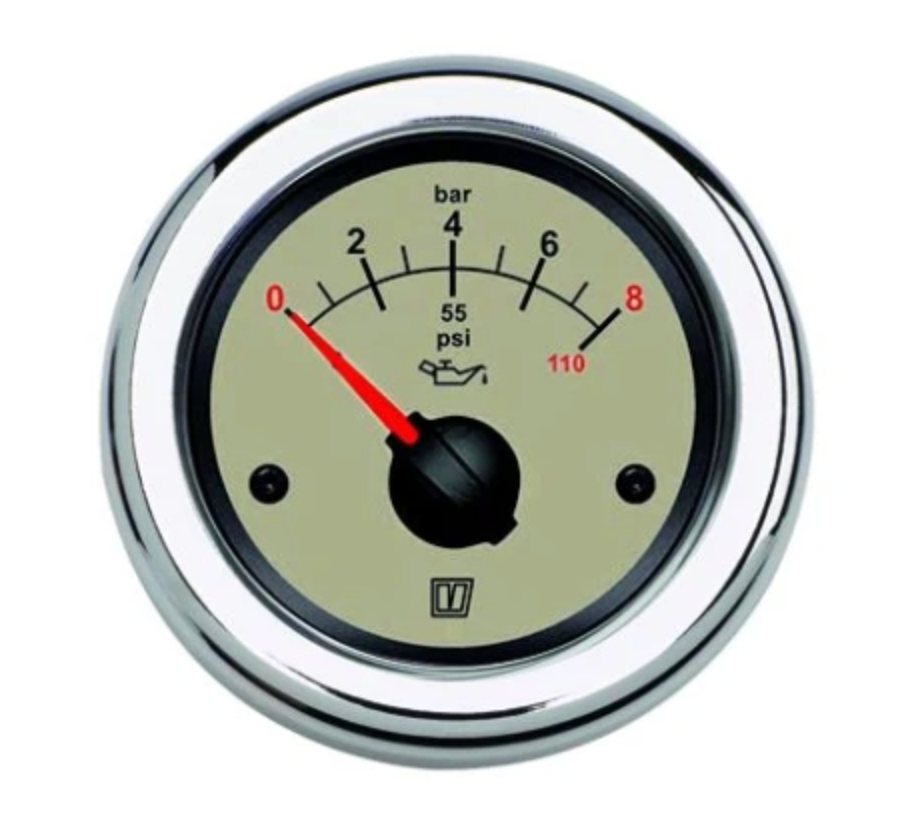

Vetus OILN Cream Oil Pressure Gauge, 12/24V, 0–8 kg/cm², 52 mm Cut-out
The Vetus OILN cream oil pressure gauge provides accurate and reliable monitoring of engine oil pressure, ensuring proper lubrication and early detection of irregular pressure levels. Featuring a calibrated dual scale of 0–8 kg/cm² and 0–110 psi, it supports a wide variety of marine engine applications that require stable and precise oil pressure indication.
As part of the updated Vetus gauge range, this model incorporates enhanced accuracy, improved bezel quality, and a double-glazed lens that minimises condensation. Its translucent cream dial is backlit from below by dimmable LEDs, allowing the user to select either yellow or red illumination for optimal visibility. The instrument fits a standard 52 mm cut-out (63 mm overall diameter) and is supplied with both a solid black bezel and a premium chrome bezel for flexible installation. A compatible oil pressure sender is required, with available options including the Vetus OILS (single-pole, M10 x 1K) and OILS2 (double-pole, M10 x 1K).
Main Features
- Accurate monitoring of engine oil pressure
- Scale calibration: 0–8 kg/cm² / 0–110 psi
- Updated Vetus mechanism for improved accuracy
- Translucent cream dial with dimmable LED backlighting
- Selectable yellow or red LED illumination
- Double-glazed lens reduces condensation
- Includes black and chrome bezels
- Fits standard 52 mm dashboard cut-out
- 63 mm overall diameter
- Watertight construction suitable for marine environments
- Backward compatible with previous Vetus gauge series
Technical Specifications
Dial Colour Cream Voltage 12/24 V DC Scale Range 0–8 kg/cm² / 0–110 psi Purpose Oil pressure gauge Cut-out Diameter 52 mm Overall Diameter 63 mm Illumination Dimmable LED, yellow or red Ring Colour Black & Chrome Watertight Yes Compatible Senders Vetus OILS (single pole, M10 x 1K), Vetus OILS2 (double pole, M10 x 1K) Diameter (inches) 2 31/64 Cut-out Diameter (inches) 2 3/63
Product Highlights
- Enhanced precision and readability from the updated Vetus gauge line
- Double-glazed design increases durability and prevents fogging
- Standardised dimensions for effortless retrofit installations
- Suitable for a wide range of marine engine oil pressure systems
-
