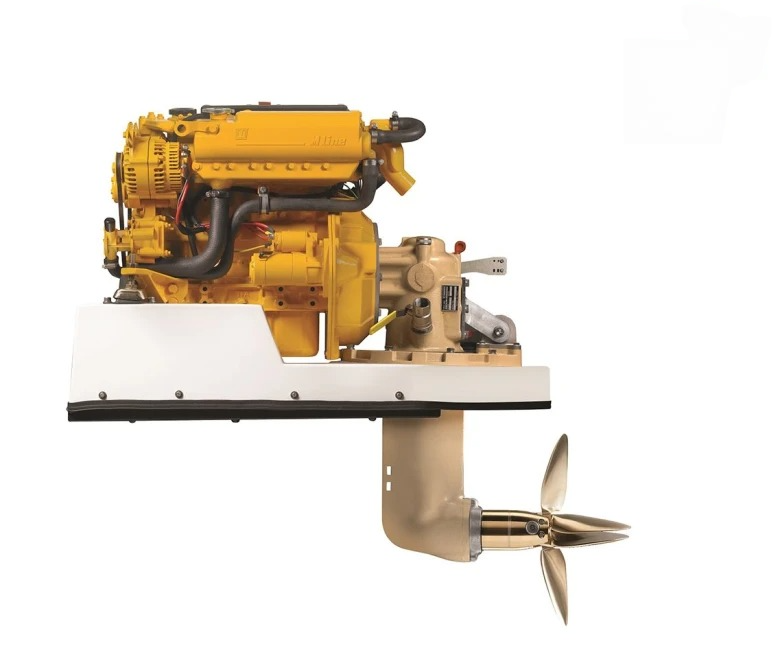

Vetus M329S---A/STM5801 - Mitsubishi M3.29 with SD10 Saildrive i=2.49

SKU: Vetus M329S---A/STM5801

1-2 weeks delivery time

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Vetus M329S---A Mitsubishi 27 HP M3.29 Marine Diesel Engine with STM5801 Saildrive SD10 ZF-2.49R is a highly efficient and reliable 3-cylinder engine delivering 27 horsepower and 60.2 Nm of torque at 2500 RPM. It features quiet operation with noise reduction of 5dB(A), providing a more comfortable boating experience. The engine is compatible with both traditional diesel and Hydrotreated Vegetable Oil (HVO), a sustainable fuel that reduces CO2 emissions by up to 90%. A high-output marine alternator ensures fast battery charging, and its water-cooled top cover lowers the engine room temperature by 15-20°C. Designed for durability, it meets SOLAS standards and delivers long-lasting performance in demanding marine environments. This engine is a top choice for those seeking fuel efficiency, reliability, and performance in their marine vessels.

Description
Ask a Question

Vetus M329S---A - Mitsubishi 27 HP M3.29 Marine Diesel Engine Saildrive Compatible

The Vetus M329S---A Mitsubishi 27 HP M3.29 Marine Diesel Engine is designed for superior performance and efficiency in marine propulsion. Paired with the STM5801 Saildrive SD10 ZF-2.49R, this 3-cylinder engine delivers an exceptional balance of power and torque, making it ideal for a variety of marine applications. It is known for its quiet operation, with a 5dB(A) noise reduction, ensuring a near-silent boating experience at cruising speeds of approximately 2200 RPM. Engineered for sustainability, it is compatible with Hydrotreated Vegetable Oil (HVO), reducing emissions by up to 90%. This engine is built to meet demanding marine standards, making it a reliable choice for both recreational and commercial vessels.

Key Features:
- Compact 3-cylinder engine delivering 27 HP for efficient boat propulsion
- Paired with STM5801 Saildrive SD10 ZF-2.49R for optimal performance
- Quiet operation with advanced noise reduction technology, reducing engine noise by 5dB(A)
- Designed for use with Hydrotreated Vegetable Oil (HVO) for a sustainable and low-carbon fuel option
- Water-cooled top cover absorbs and dispels radiant heat, reducing engine room temperature by up to 20%
- Standard high-output marine alternator for fast and efficient battery charging
- Meets all SOLAS (Safety of Life at Sea) standards for reliable marine operation
- Designed to handle harsh marine environments while maintaining peak performance
Specifications:
- Max. speed (RPM): 3600
- Number of cylinders: 3
- Max. torque: 60.2 Nm at 2500 RPM
- Power (kW): 20
- Max engine power (HP): 27
- Saildrive Compatibility: STM5801 Saildrive SD10 ZF-2.49R
- Noise reduction: 5dB(A) noise reduction with cast aluminum top cover and advanced air filter system
- Fuel type compatibility: Hydrotreated Vegetable Oil (HVO) and conventional diesel
- Exhaust emissions reduction: Up to 90% reduction in CO2, CO, HC, NOx, and particulate matter (PM)
- Cooling system: Water-cooled top cover reduces engine room temperature by 15-20%
- Alternator: High-output marine alternator for fast and efficient battery recharging
- Compliance: Meets SOLAS and other international marine safety standards
- Dimensions (LxWxH): 905 x 489 x 625 mm (35.6 x 19.3 x 24.6 inches)
- Weight: 195 kg (429 lbs)
- Engine displacement: 2.9 liters
- Compression ratio: 22:1
- Fuel consumption: 2.6 L/h at 2500 RPM
- Cooling method: Freshwater cooling system with heat exchanger
- Oil capacity: 5.5 liters
- Max. operating temperature: 90°C (194°F)
- Mounting type: Horizontal or vertical mount options
- Engine control: Electronic or mechanical throttle control options available
Compatibility and Application:

The Vetus M329S---A Mitsubishi 27 HP M3.29 Marine Diesel Engine is designed for marine vessels that require high performance and fuel efficiency. This engine is compatible with a range of boats, including powerboats, yachts, and commercial vessels equipped with Saildrive systems. The engine’s compact design, combined with its high torque output, makes it perfect for both inshore and offshore boating, offering reliability and efficiency in demanding marine conditions. Its ability to run on HVO fuels also makes it a great choice for eco-conscious boaters looking to reduce their carbon footprint.

Benefits:
- Compact and powerful 3-cylinder design for efficient marine propulsion
- Low noise operation with 5dB(A) reduction for a quieter boating experience
- Compatible with Hydrotreated Vegetable Oil (HVO), offering a greener fuel alternative
- Significant reduction in engine room temperature by 15-20% thanks to the water-cooled top cover
- Fast battery recharge due to high-output marine alternator
- Exceeds SOLAS standards, ensuring safety and reliability at sea
- Built to withstand the harshest marine environments while maintaining optimal performance
- Eco-friendly with up to 90% reduction in harmful emissions, contributing to a cleaner marine environment
- High performance at all speeds, with consistent power output and low fuel consumption
- Flexible mounting options for easy installation in a variety of vessels
- Engine control options available for both electronic and mechanical throttle systems
