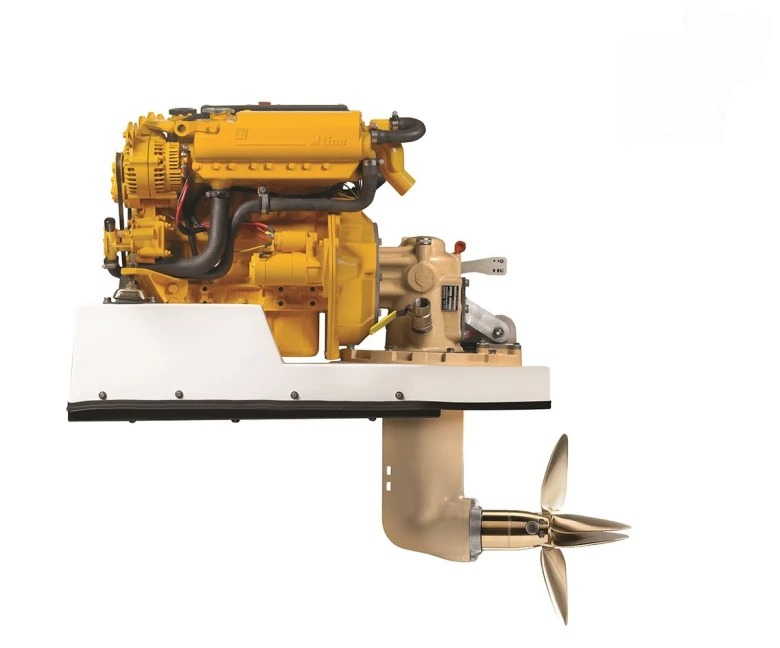

Vetus M329S---A/STM5800 - Mitsubishi M3.29 with SD10 Saildrive i=2.23

Vetus M329S---A - Mitsubishi 27 HP M3.29 Marine Diesel Engine Saildrive Compatible

The Vetus M329S---A Mitsubishi 27 HP M3.29 Marine Diesel Engine is a high-performance, fuel-efficient, and quiet 3-cylinder engine designed for marine use. This engine delivers a maximum output of 27 HP (20 kW) and 60.2 Nm of torque at 2500 RPM, ensuring smooth and powerful operation. It is compatible with the STM5800 Saildrive SD10 ZF-2.23R, providing reliable and efficient power transfer. With its modern design, low noise emissions, and reduced engine room temperature by up to 20%, the M3.29 engine is built for both performance and comfort on the water. Additionally, the engine is designed for longevity with its corrosion-resistant components, high-efficiency cooling system, and advanced air filtration system that reduces noise levels by up to 5dB(A). A high-output marine alternator is included for rapid battery charging, making the engine ideal for long-range cruising and high-demand applications.

Key Features:

• 27 HP (20 kW) 3-cylinder marine diesel engine
• High torque output of 60.2 Nm at 2500 RPM for excellent acceleration and power
• Compatible with STM5800 Saildrive SD10 ZF-2.23R for smooth and efficient power transfer
• Water-cooled top cover reduces engine room temperature by 15-20% compared to similar engines
• Engine noise reduced by 5dB(A) at 2200 RPM for a quieter boating experience
• Step-like aluminum top cover for easy access and maintenance
• Equipped with a high-output marine alternator for fast battery recharging
• Meets SOLAS (Safety of Life at Sea) requirements for reliability and safety
• Approved for use with Hydrotreated Vegetable Oil (HVO), offering lower CO2 and other emissions by up to 90%
• Compact design suitable for tight engine spaces on boats and yachts
• Designed to meet future market demands with cutting-edge technology and sustainable fuel options

Specifications:

• Max Speed (RPM): 3600
• Number of Cylinders: 3
• Max Torque: 60.2 Nm at 2500 RPM
• Power: 20 kW (27 HP)
• Max Engine Power: 27 HP
• Alternator Output: 14V, 60A
• Cooling System: Water-cooled top cover
• Fuel Type: Diesel, compatible with Hydrotreated Vegetable Oil (HVO)
• Dimensions (L x W x H): 550 x 500 x 500 mm
• Dry Weight: 150 kg
• Fuel Consumption: 2.3 L/h at 2500 RPM
• Engine Type: 4-Stroke, In-line, Direct Injection
• Emission Standard: Meets ISO 8665 and EU RCD regulations
• Starting System: Electric start with key switch
• Marine Gearbox: ZF 2.23R with Saildrive compatibility
• Fuel Tank Capacity: 40 liters
• Oil Capacity: 5.5 liters
• Cooling Water Capacity: 15 liters
• Recommended Propeller Size: 14”-16” diameter, 10”-14” pitch
• Oil Change Interval: 100 hours
• Engine Mounting Type: Flexible, anti-vibration mounts
• Compression Ratio: 23:1
• Starting Voltage: 12V DC
• Noise Level: 72 dB(A) at 2200 RPM
• Warranty: 2 years from the date of purchase
• Operating Temperature Range: -5°C to +50°C
• Maximum Operating Pressure: 2.5 bar
• Weight (Engine with Gearbox): 180 kg
• Hydraulic Fluid Type: ISO VG 15

Benefits:

• Fuel-efficient design for extended cruising range and reduced fuel consumption
• Low noise operation with advanced air filter and water-cooled top cover
• Improved engine room conditions and lower temperatures with efficient cooling system
• High-output alternator for rapid battery charging, supporting onboard electrical systems
• Eco-friendly operation with the ability to use sustainable fuels like Hydrotreated Vegetable Oil (HVO)
• Durable and corrosion-resistant construction ensures longevity in harsh marine environments
• Compact and lightweight design fits easily into tight engine compartments
• Meets all international marine safety standards, including SOLAS, ensuring safe operation
