ID
1397023
$ 3,689.73
1-2 weeks delivery time
-
+
The Parker 75500FGX10 is a Racor dual 500 Turbine fuel filter/water separator assembly with a total flow rate of 120 GPH (454 LPH) and a 10 micron Aquabloc filtration configuration. It features two 500FG filter housings, clear engineering plastic bowls, a 4-way valve, and 3/4"-16 UNF male SAE J1926 O-ring boss connections.
- Description
- Ask a Question
-

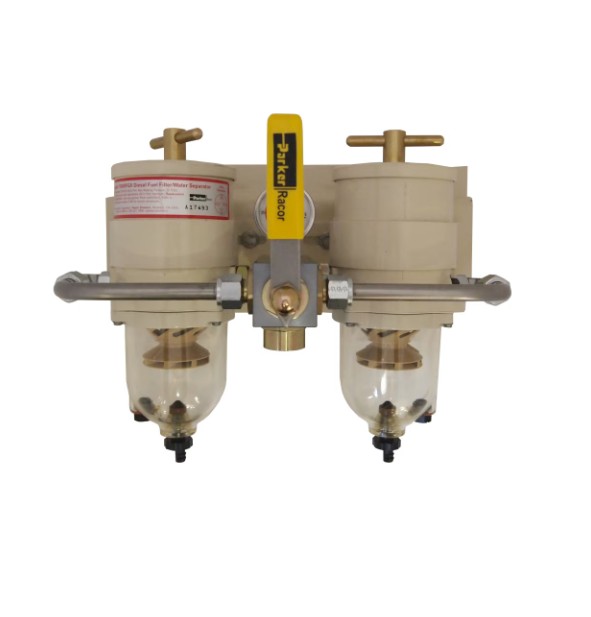

Parker 75500FGX10 Racor Dual 500 Turbine Fuel Filter/Water Separator, 10 Micron
The Parker 75500FGX10 is a Racor dual 500 Turbine fuel filter/water separator assembly designed for diesel and biodiesel filtration. The assembly provides a total flow rate of 120 GPH (454 LPH), corresponding to 60 GPH (227 LPH) per 500FG filter.
The Turbine Series uses a three-stage separation and filtration process consisting of initial water separation, coalescing, and final filtration through Racor Aquabloc media. The supplied configuration has a filtration rating of 98% at 10 micron and uses clear engineering plastic collection bowls.
A 4-way valve allows the dual-filter arrangement to be managed as a manifold assembly. The unit is supplied without a heater and uses 3/4"-16 UNF male SAE J1926 O-ring boss connections.
Technical Specifications
Specification Details Part Number 75500FGX10 Component Type Dual Turbine Fuel Filter/Water Separator Assembly Filter Housing 500FG Configuration Dual 500 Turbine Assembly Total Flow Rate 120 GPH (454 LPH) Flow Rate per Filter 60 GPH (227 LPH) Micron Rating 98% @ 10 Micron Filter Media Aquabloc Filtration Process Three-Stage: Water Separation, Coalescing, Filtration Valve Type 4-Way Valve Bowl Type Clear Engineering Plastic Connection Type 3/4"-16 UNF Male, SAE J1926 O-Ring Boss Heater Not Included Fuel Application Diesel and Biodiesel Region North America and EMEA -
