ID
1397025
$ 1,179.51
1-2 weeks delivery time
-
+
The Parker 500MA10 is a Racor Marine 500 Turbine fuel filter/water separator assembly with a 10 micron rating and a flow rate of 60 GPH (227 LPH). It uses Aquabloc filtration media and a clear engineering plastic bowl protected by a stainless steel shield, with 3/4"-16 UNF-2B SAE female connections.
- Description
- Ask a Question
-

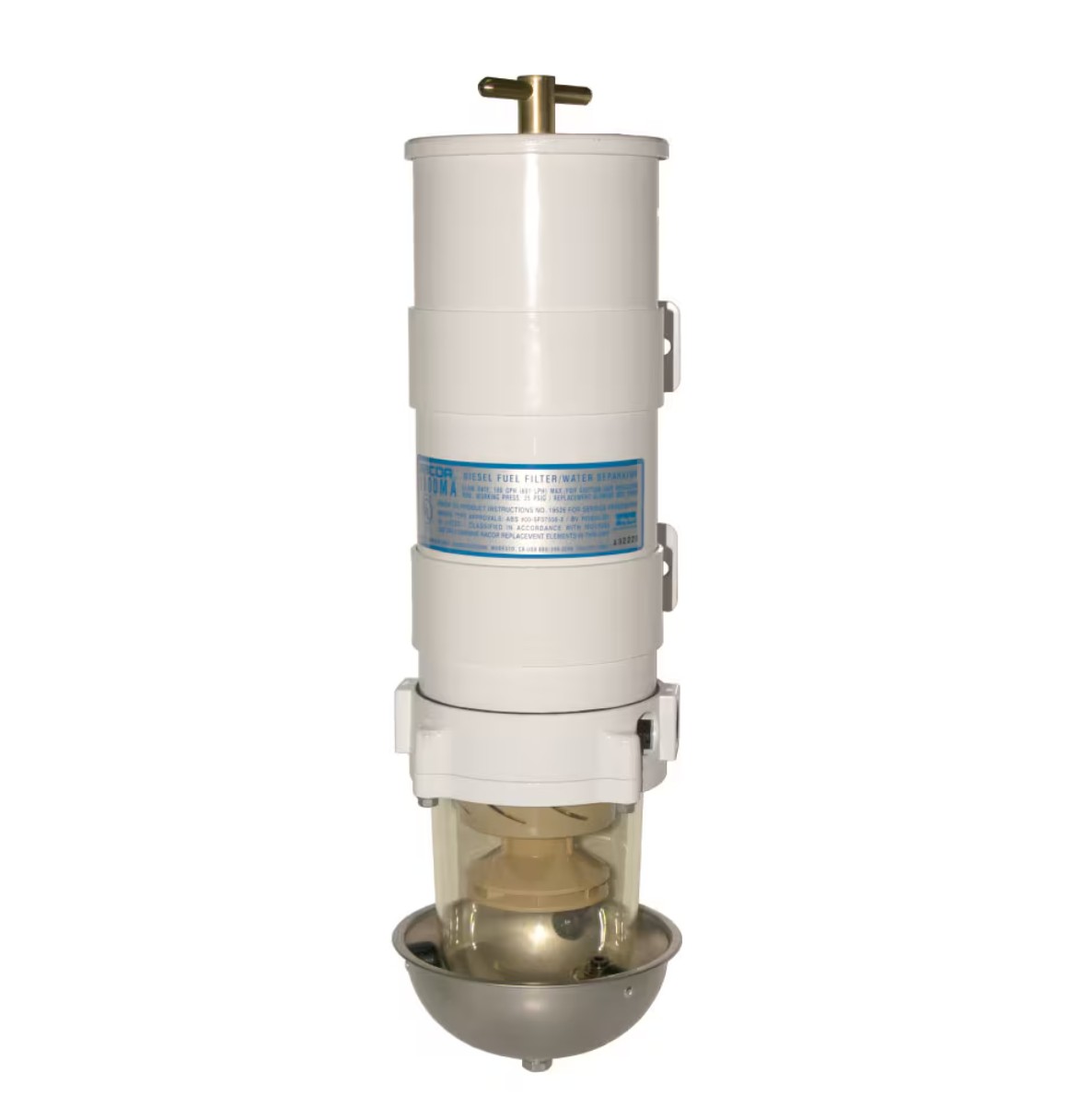

Parker 500MA10 Racor Marine Turbine Fuel Filter/Water Separator
The Parker 500MA10 is a Racor Marine 500 Series single Turbine fuel filter/water separator designed for marine filtration applications.
The assembly has a supplied flow rate of 60 GPH (227 LPH) and a filtration rating of 98% at 10 micron. It uses Racor Aquabloc filtration media and a three-stage process consisting of water separation, coalescing, and final filtration.
The unit is equipped with a clear engineering plastic bowl protected by a stainless steel shield and uses 3/4"-16 UNF-2B SAE female connections.
Technical Specifications
Specification Details Part Number 500MA10 Component Type Marine Single Turbine Fuel Filter/Water Separator Product Series 500 Marine Filter Series Flow Rate 60 GPH (227 LPH) Micron Rating 98% @ 10 Micron Filter Media Aquabloc Filtration Process Three-Stage: Water Separation, Coalescing, Filtration Bowl Type Clear Engineering Plastic with Stainless Steel Shield Connection Type 3/4"-16 UNF-2B SAE Female Valve Type None Application Marine Filtration Region North America and EMEA Package Quantity 6 Units per Box -
