ID
1397024
$ 865.95
1-2 weeks delivery time
-
+
The Parker 500FG10 is a Racor 500 Series single Turbine fuel filter/water separator with a 10 micron rating and a flow rate of 60 GPH (227 LPH). It features a clear engineering plastic bowl, 3/4"-16 UNF-2B SAE female connections, Aquabloc filtration media, and no integrated valve or heater.
- Description
- Ask a Question
-

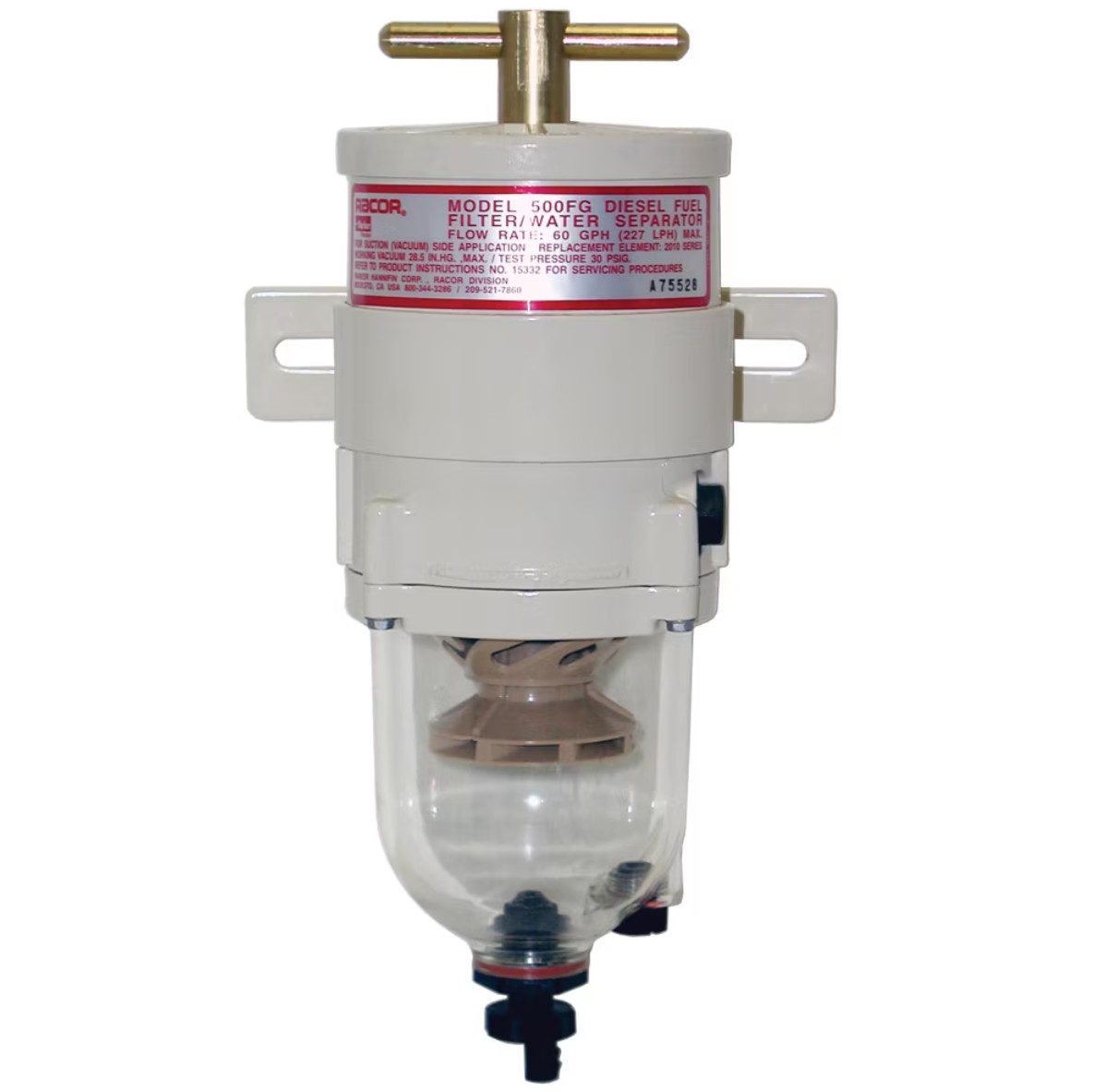

Parker 500FG10 Racor 10 Micron Turbine Fuel Filter/Water Separator
The Parker 500FG10 is a Racor 500 Series single Turbine fuel filter/water separator designed for diesel and biodiesel fuel applications.
The assembly has a supplied flow rate of 60 GPH (227 LPH) and a filtration rating of 98% at 10 micron. It uses Racor Aquabloc media and a three-stage separation and filtration process consisting of water separation, coalescing, and final filtration.
The unit is supplied with a clear engineering plastic bowl, 3/4"-16 UNF-2B SAE female connections, no valve, and no heater.
Technical Specifications
Specification Details Part Number 500FG10 Component Type Single Turbine Fuel Filter/Water Separator Product Series 500FG Flow Rate 60 GPH (227 LPH) Micron Rating 98% @ 10 Micron Filter Media Aquabloc Filtration Process Three-Stage: Water Separation, Coalescing, Filtration Connection Type 3/4"-16 UNF-2B SAE Female Bowl Type Clear Engineering Plastic Valve Type None Heater Not Included Fuel Application Diesel and Biodiesel Region North America and EMEA -
