The Jabsco 82906-0094 Hotshot deck wash diaphragm pump delivers strong on-demand cleaning performance with 24V DC operation, 6 GPM (23 liters per minute) flow, and 70 PSI (4.8 bar) shutoff pressure. Its compact polypropylene construction uses large snap-in port fittings with 3/4 inch straight hosebarb connections on both inlet and discharge, supports a suction height of 2.4 meters, and includes an integrated sealed pressure switch for automatic operation. Rated for fresh water and salt water use, it is designed for durable marine washdown service and is noted as replaced by pump model P602J-219N-3A.
- Description
- Ask a Question
-

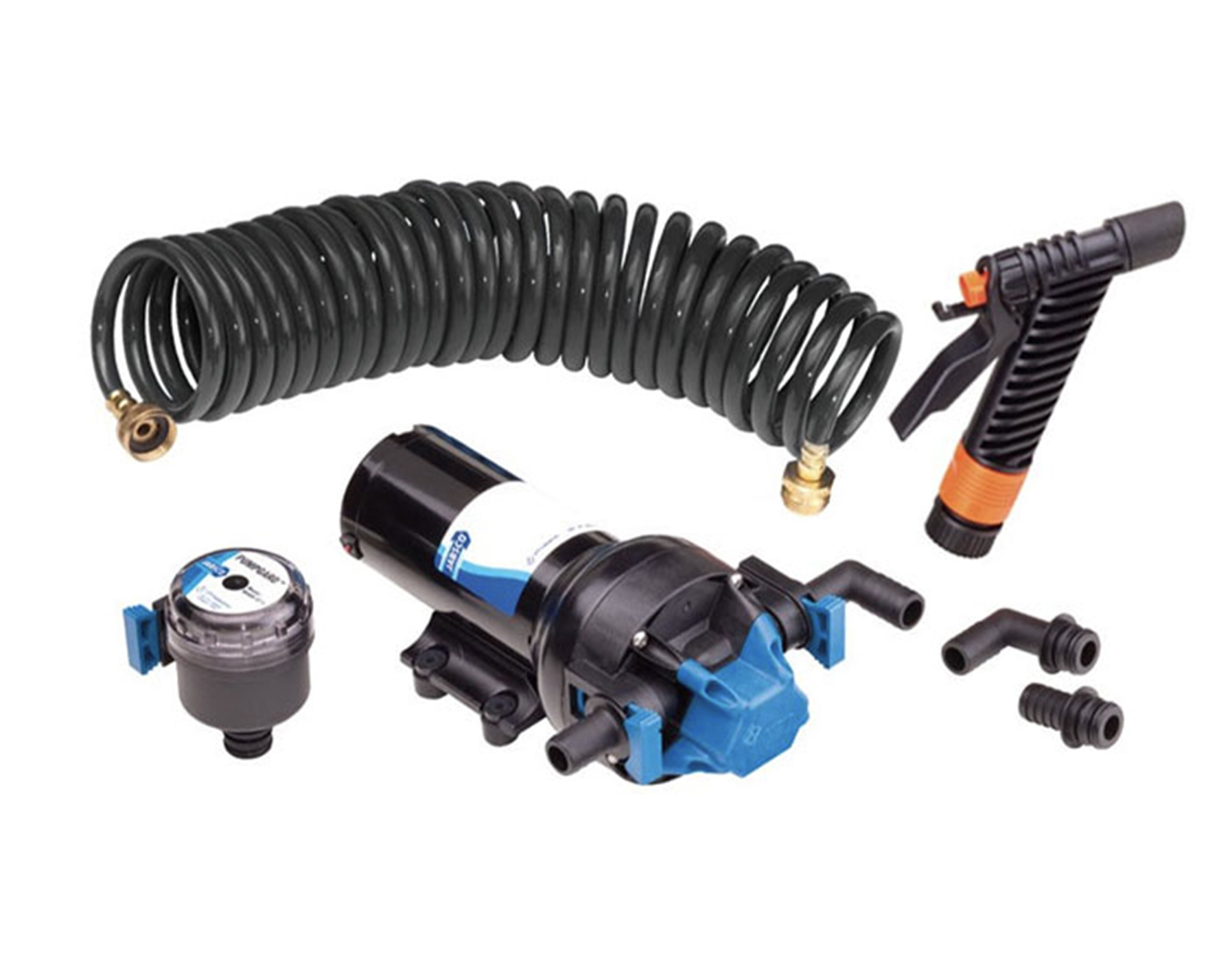

Jabsco 82906-0094 Hotshot Marine Deck Wash Pump Unit
The Jabsco 82906-0094 Hotshot Deck Wash is a heavy duty marine washdown pump built to provide strong spray performance for cleaning tasks such as anchors, buoys, and onboard work areas. With a compact footprint and snap-in port fittings, it supports practical installation while delivering high-pressure washdown capability in marine environments.
Application
- Marine deck wash and washdown cleaning
- On-demand spray operation via integrated pressure switch
- Designed for use with fresh water and salt water only
Compatibility
- Replacement noted: P602J-219N-3A (new version pump model)
Technical Specifications
Supplier Code 82906-0094 Order Number 00320549 Barcode 671880623513 Voltage 24 Volts DC Flow Rate 23 liters per minute (6 GPM) Pressure 4.8 bar (70 PSI) shutoff Suction Height 2.4 meters Self-Priming Capability 7 feet Pump Type 4 chamber aperture Port Size Large snap-in port fittings; 3/4 inch straight hosebarb for inlet and discharge Dimensions (L x W x H) 240 x 104 x 97 mm Weight 2.5 kg Maximum Fluid Temperature Range 32°F to 140°F (0°C to 60°C)
Product Details
- Pump body: Polypropylene
- Pumphead and upper housing: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV diaphragm
- Check valves: EPDM
- Pressure control: Integrated, sealed pressure switch for on-demand operation
- Motor: Permanent magnet brushed type with TENV (Totally Enclosed Non-Ventilated) enclosure
- Ingress protection: IPX6
- Mounting: Vibration dampening mounting feet
- Operation notes: Can run dry without damage; not submersible
- Installation guidance: Mount horizontally, or if vertically with the pumphead facing down; mount above the waterline in a dry area with adequate ventilation
- Service: Spare parts available
Features
- Strong cleaning power with 6 GPM flow and 70 PSI shutoff pressure
- Compact design with large snap-in port fittings for straightforward plumbing
- Efficient and quiet operation
- Integrated on-demand pressure switch for automatic start/stop
- Corrosion protection via plastic motor housing
Important: Do not use motor pump units for pumping gasoline or other flammable liquids. When connected to power, the pump can start automatically without warning if the pressure switch senses pressure below the switch shutoff setting.
-
