ID
1331533
$ 91.11
1-2 weeks delivery time
-
+
The Jabsco 836-0001B neoprene impeller is a 95 x 63.5 mm, 9 blade replacement designed for spline drive use on a 25.4 mm Cartel shaft and specified for the 200 SP NE SPL model. Built with a durable neoprene body and a brass insert, it supports reliable marine service and is listed as compatible with Johnson 09-1029B and Vetus IMP00901 replacement references.
- Description
- Ask a Question
-

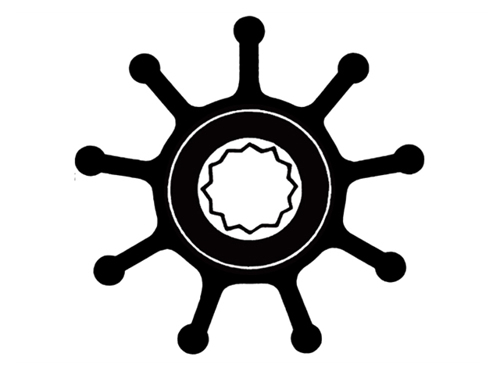

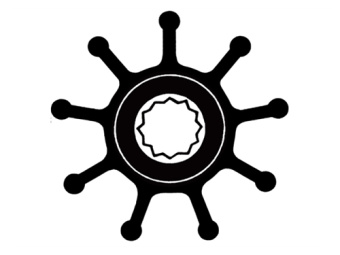

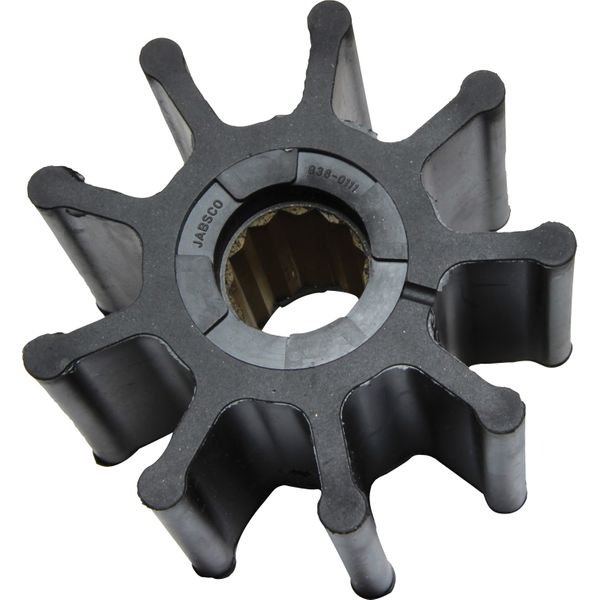

Jabsco 836-0001B Neoprene Spline Drive Impeller
The Jabsco 836-0001B is a flexible neoprene impeller for marine pump service, engineered to restore dependable performance when replacing a worn impeller. With a spline drive hub and a 9 blade design, it is intended for applications requiring a 25.4 mm shaft fit and is specified for the 200 SP NE SPL model.
Application
- Intended model: 200 SP NE SPL
Compatibility
- Johnson 09-1029B
- Vetus IMP00901
Alternatives
- Ancor J050005
- Caterpillar 1L4774
- Cummins 160596
- Cummins 166758
- Cummins 556540
- Cummins 556850
- Cummins 21601R
- Detroit Diesel 5193553
- Perkins 460027
- Vetus IMP00901
- Volvo 807904
- Volvo 825942
- Volvo 875660
- Jabsco 836-0001-P
- Jabsco 836-0001
Technical Specifications
Brand Jabsco Supplier Code 836-0001B Order Number 00320265 Barcode 671880547215 Impeller Diameter 95 mm Impeller Depth 63 mm Dimensions (W x H) 95 x 63.5 mm Shaft Diameter 25.4 mm Shaft Type Cartel Impeller Hub Spline Drive Number of Blades 9 Material Neoprene Insert Material Brass Shipping Weight 0.70 kg
Product Details
- Product portfolio: Impeller
- Construction: Neoprene impeller (profile O) with spline drive
- Notes from manufacturer information: Jabsco flexible impellers are subject to rigorous quality processes to ensure reliable, efficient, and long lasting performance
Features
- Neoprene body designed for marine pump service
- 9 blade design sized 95 x 63.5 mm
- Spline drive hub with fit for a 25.4 mm Cartel shaft
-
