ID
1322522
$ 1,262.60
1-2 weeks delivery time
-
+
The Jabsco 8600-0002B EPDM impeller is a food-approved, high-pressure impeller designed for Jabsco 28 series hygienic impeller pumps, featuring 12 blades, a double flat drive hub, and a plastic insert. It is specified with dimensions of 117.5 x 88.9 mm (also listed as 118 mm diameter and 89 mm depth) and a 25.4 mm shaft fit (also listed as 25 mm), with an operating temperature range of approximately 4°C to 120°C. FDA and 3A certifications support hygienic-use requirements, and compatibility is commonly referenced for pump models 28500-XXXX, 28520-XXXX, 28530-XXXX, and 28540-XXXX.
- Description
- Ask a Question
-

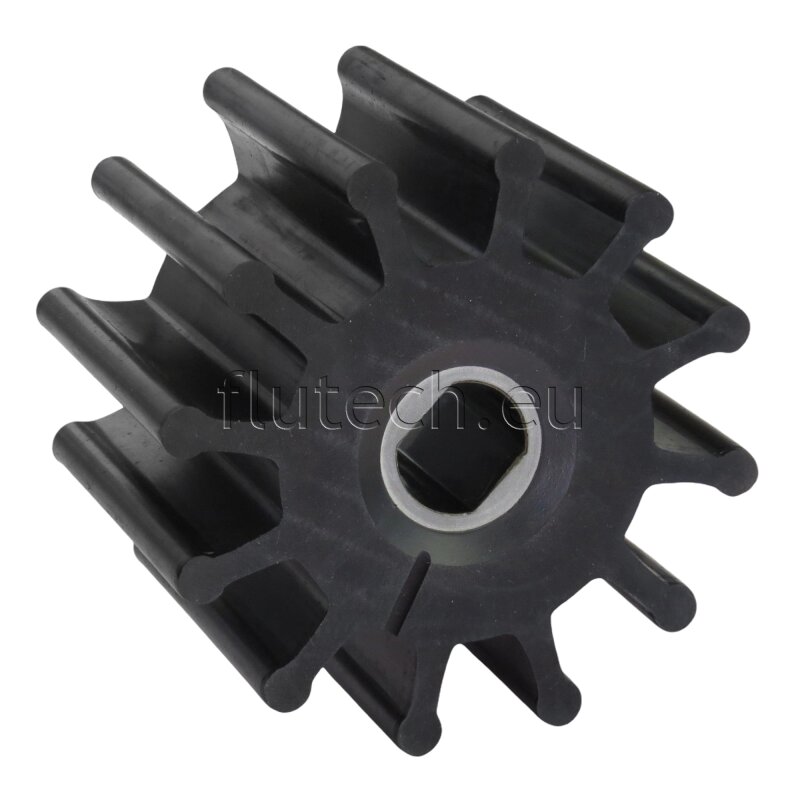

Jabsco 8600-0002B Hygienic EPDM Impeller
The Jabsco 8600-0002B is an EPDM impeller intended for hygienic impeller pump service in the Jabsco 28 series. With a 12-blade design and FDA and 3A certifications, it supports reliable operation across a wide temperature range for compatible pump applications.
Compatibility
- Jabsco 28 series hygienic impeller pumps
- 28500-XXXX
- 28520-XXXX
- 28530-XXXX
- 28540-XXXX
Technical Specifications
Brand Jabsco Part Number 8600-0002B Product Portfolio Impeller Material EPDM (Food Approved) Number of Blades 12 Dimensions 117.5 x 88.9 mm Diameter 118 mm Depth 89 mm Shaft Size 25.4 mm Shaft Diameter 25 mm Impeller Hub Double Flat Drive Insert Material Plastic Temperature Range Approximately 4 C to 120 C Certifications FDA, 3A Pressure Range High Shipping Weight 1,00 kg
Product Details
- Impeller designation: Impeller 370 HP EPDM 2FL
- Spare part type: High pressure EPDM impeller
- Material note: If there is any uncertainty regarding material compatibility between the pumped liquid and the impeller, check compatibility of all pump materials in contact with the pumped medium before operation.
Features
- 12-blade EPDM impeller for hygienic impeller pump service
- FDA and 3A certified
- Designed for operation from approximately 4 C to 120 C
- Double flat drive hub with plastic insert
- Specified as a high-pressure impeller
-
