The Jabsco 82906-0092 HotShot HD6 washdown pump delivers up to 6 GPM with a 70 PSI shutoff for strong on-demand cleaning performance in marine environments. A 12V DC motor with an integrated, sealed pressure switch supports automatic operation, while self-priming up to 7 feet and run-dry capability add installation flexibility and protection during intermittent use. Built with durability upgrades such as a powder-coated motor shell, co-molded diaphragm, and cast aluminum components, it is suitable for fresh and salt water use within a 32°F to 140°F (0°C to 60°C) fluid temperature range, with large Snap-In Port and 3/4 inch straight hose barb fittings; not submersible and not for gasoline or other flammable liquids.
- Description
- Ask a Question
-

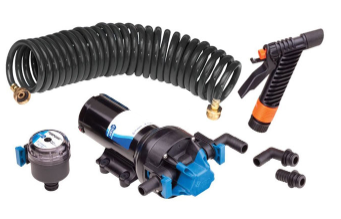

Jabsco 82906-0092 HotShot HD6 Washdown Pump Unit
The Jabsco 82906-0092 is a heavy-duty marine washdown diaphragm pump built to provide on-demand spray for common onboard cleaning tasks. With high-pressure shutoff performance and a durable HD design, it supports reliable washdown operation in harsh marine conditions using fresh or salt water.
Application
- Marine washdown for cleaning anchors, buoys, fishing areas, and similar onboard tasks
- Can be used with a Y-valve for dual-purpose livewell circulation (as described in the provided information)
- Designed for use with fresh water and salt water only
Compatibility
- Series: HotShot HD6
- Superseded By: P601J-219N-4A
Technical Specifications
Part Number 82906-0092 Type Marine washdown diaphragm pump Rated Voltage 12V DC Flow Rate Up to 6 GPM Shutoff Pressure 70 PSI Self-Priming Up to 7 ft Run-Dry Capability Can run dry Fluid Temperature Range 32°F to 140°F (0°C to 60°C) Ingress Protection IPX6 Inlet Port Fittings Large Snap-In Port fittings; 3/4 in straight hose barb Discharge Port Fittings Large Snap-In Port fittings; 3/4 in straight hose barb
Product Details
- Pressure Control: Integrated, sealed pressure switch for on-demand operation
- Motor Design: Permanent magnet brushed motor in a TENV (Totally Enclosed Non-Ventilated) shell
- Durability Updates (HD Model): Powder-coated motor shell, co-molded diaphragm technology, cast aluminum endbells and lower housing
- Materials: Pump body polypropylene; pumphead and upper housing glass fiber reinforced polypropylene; co-molded TPV diaphragm; EPDM check valves
- Mounting Guidance: Mount horizontally, or if vertically, with the pumphead facing down; mount above the waterline in a dry area with adequate ventilation
- Service: Spare parts available
Features
- Up to 6 GPM output for fast washdown performance
- 70 PSI shutoff supports strong spray pressure
- Self-priming up to 7 ft for flexible installation
- Run-dry capability helps protect the pump during intermittent use
- Snap-In Port fittings and 3/4 in straight hose barb connections for straightforward plumbing
Important Notes
- Not submersible
- Do not use with gasoline or other flammable liquids
- When connected to power, the pump can start automatically without warning if the pressure switch senses pressure below shutoff
-
