The Jabsco 826050092 HotShot diaphragm washdown pump delivers powerful, pressure-controlled water flow for demanding cleaning tasks, providing 22.7 liters per minute (5 GPM) and up to 4.8 bar (70 psi). Its 5-chamber, self-priming design supports dry running without damage and helps extend service life in harsh environments. Built for 12V DC systems and suitable for both freshwater and seawater use, it includes quick-connect fittings plus an inlet strainer, trigger nozzle, and port fittings to simplify installation.
- Description
- Ask a Question
-
Jabsco 826050092 HotShot Diaphragm Washdown Pressure System
The Jabsco HotShot heavy-duty washdown pump is built to deliver strong, consistent water pressure for high-demand cleaning on boats and in outdoor environments. With pressure-controlled operation, self-priming capability, and a dry-run capable diaphragm design, it supports dependable washdown performance in challenging conditions using 12V DC power.
Application
- Marine washdown for boats, yachts, and watercraft
- Cleaning decks, surfaces, equipment, and hard-to-reach areas
- Freshwater and seawater washdown systems
- Agricultural, off-grid, and outdoor use requiring high-capacity water delivery
- On-demand spray cleaning (anchors, buoys, fishing areas)
- Sometimes used with a Y valve for dual-purpose livewell circulation (application note)
Technical Specifications
Brand Jabsco Part Number 82605-0092 (also referenced as 826050092) Flow Rate 22.7 liters per minute (5 GPM) Maximum Pressure 4.8 bar (70 psi) Shut-Off Pressure 70 psi Voltage 12V DC Fuse Size 20A Self-Priming Up to 3 meters vertical lift (also listed as 7 feet) Connections 19 mm (3/4 inch) bore hose; large size snap-in port fittings with 3/4 inch straight hose barb fittings (inlet and discharge) Dimensions 270 mm long x 111 mm wide x 111 mm high Weight 4 kg (actual); 7.06 kg packed; shipping weight listed as 3.80 kg Packaged Dimensions 30.00 cm x 18.00 cm x 20.00 cm Operating Temperature Range -10 C to 50 C (14 F to 122 F); maximum fluid temperature range also listed as 0 C to 60 C (32 F to 140 F) Water Resistance Water-resistant; suitable for seawater use Ingress Protection IPX6
Product Details
- Pump Type: Pressure controlled diaphragm washdown pump
- Diaphragm Design: 5-chamber design with dry-running capability
- Operation: Integrated, sealed pressure switch for on-demand operation

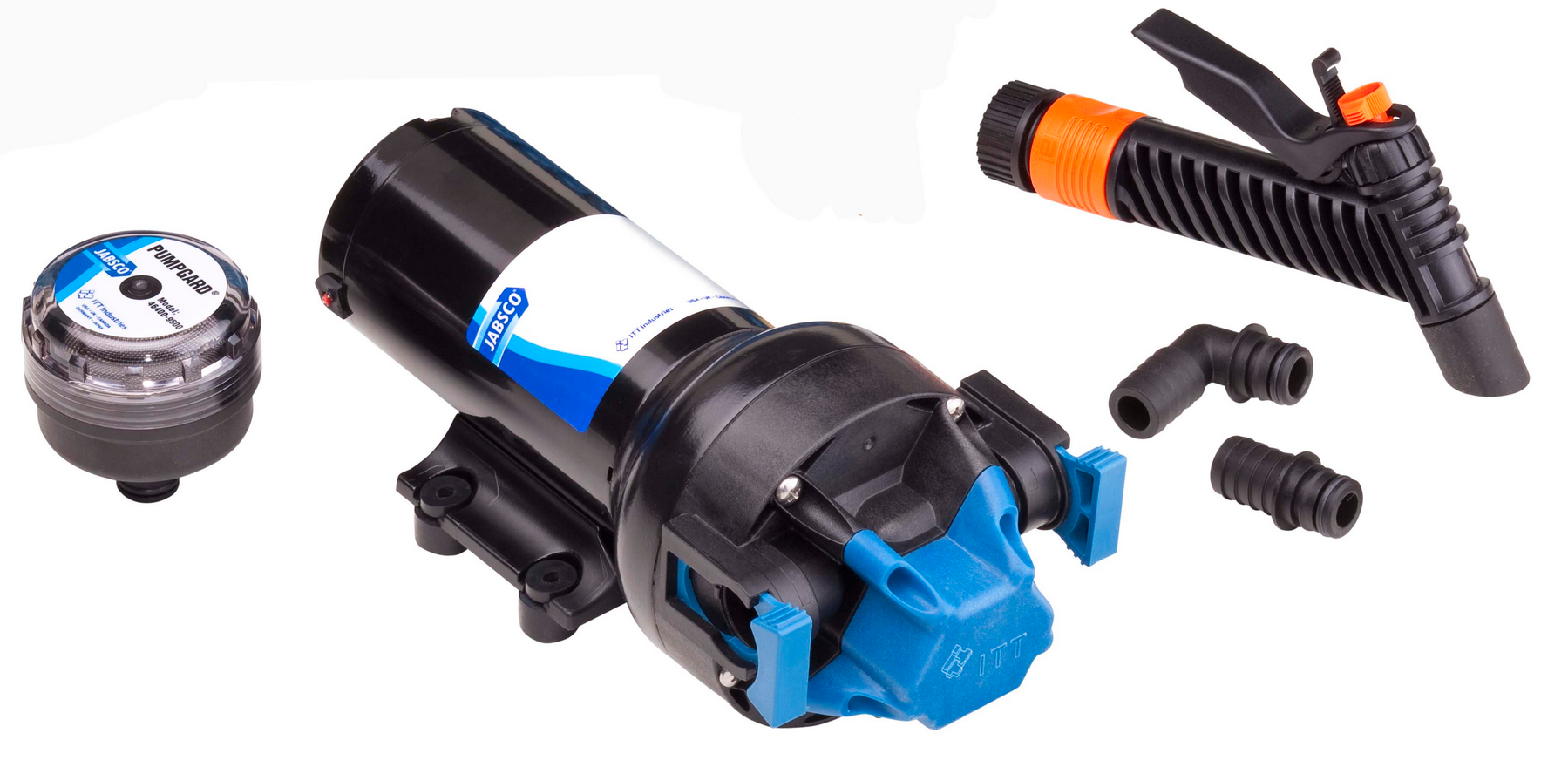

- Included Accessories: Inlet strainer, trigger nozzle, and port fittings
- Noise and Vibration Control: Rubber feet to reduce vibration and noise during operation
- Protection: Overcurrent protection (listed)
- Pump Body Material: Polypropylene
- Mounting Guidance: Mount horizontally, or vertically with the pump head facing down; mount above the waterline in a dry area with adequate ventilation
- Important Notes: Not submersible; do not use for pumping gasoline or other flammable liquids; designed for use with fresh water and salt water only
- Availability: Listed as not available anymore; alternative listed as Jabsco P601J-219N-3A
- Service: Spare parts available
Features
- High-capacity washdown performance with 22.7 L/min (5 GPM) flow
- Up to 4.8 bar (70 psi) for powerful cleaning
- Self-priming capability for flexible installation
- Dry-run capable diaphragm design to help extend pump life
- Designed for demanding marine and outdoor environments, including seawater use
- Quick-connect fittings and included accessories support straightforward installation
-
