The Jabsco 7420-0101 bronze flexible-impeller engine cooling pump delivers dependable cooling-water flow with 1-1/4 inch NPT internal ports, a Neoprene impeller, and a carbon/ceramic mechanical seal. It provides a nominal 235 liters per minute (62 gallons per minute) at 1750 RPM, primes at both low and high speeds, and supports suction lift up to 22 feet when wetted (10 feet dry lift with a minimum of 800 RPM). Built for marine use and capable of handling thin or viscous liquids, it must not be run dry (over 30 seconds) and is not suitable for pumping gasoline or other flammable liquids.
- Description
- Ask a Question
-

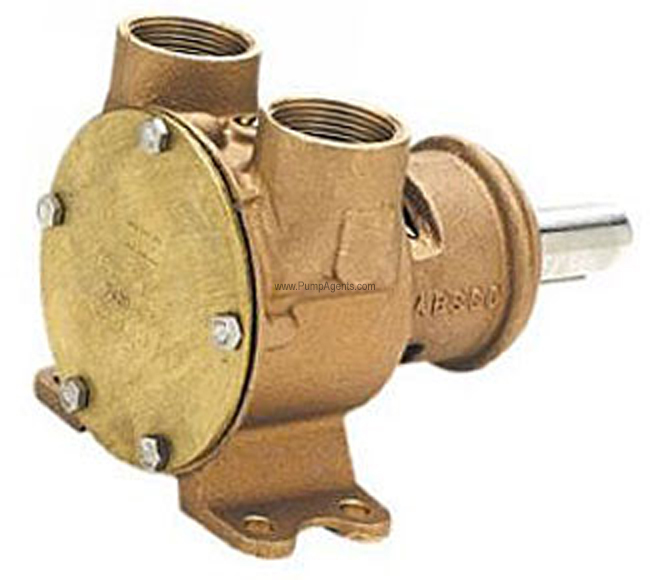

Jabsco 7420-0101 Bronze Flexible Impeller Cooling Pump
The Jabsco 7420-0101 is a bronze, flexible-impeller pump end designed for engine cooling and versatile fluid transfer. Supplied as a bare-shafted pedestal pump end only, it combines strong self-priming performance with the ability to move both thin and viscous liquids while maintaining suitability for marine environments.
Application
- Engine cooling
- Washdown
- Circulation and water circulation
- Bilge pumping
- General-purpose onboard or dockside pumping
- Circulating and transferring liquids
- Transfer applications including soap, liquors, pastes, glues, glycerine, lotions, and brine
Technical Specifications
Part Number 7420-0101 Pump Type Flexible impeller engine cooling pump (pedestal pump end only) Pump Body Material Bronze Shaft Material Stainless steel Impeller Material Neoprene Shaft Seal Carbon/ceramic mechanical seal Port Size 1-1/4 inch NPT internal Nominal Flow Rate 235 liters per minute (62 gallons per minute) at 1750 RPM Priming Primes at low or high speeds (airtight suction lines required) Vertical Dry Suction Lift Up to 10 ft (3.0 m) with minimum 800 RPM Suction Lift (Wetted) Up to 22 ft (6.7 m) Impeller Temperature Range 45 F to 180 F (7 C to 82 C) Pressure Limit (Continuous) 30 psi Pressure (Intermittent) 35 to 50 psi with high-pressure impeller 807-1001 plus an extra gasket Bearings Double row ball bearing Packaged Dimensions (L x H x W) 34.00 cm x 28.00 cm x 27.00 cm Actual Weight 4.97 kg (approximately 5.47 kg packed)
Product Details
- Configuration: Bare shafted pedestal pump end only
- Internal components: Full thickness cam, standard length shaft
- Rotation: Normally assembled for clockwise rotation at the factory when viewed from the end cover
- Bi-directional pumping: Pumps in either direction; shaft rotation determines intake and discharge port locations
- Mounting: Can be mounted at any angle and operates effectively in any direction
- Liquid handling: Pumps thin or viscous liquids and can handle more solids in suspension than other rotary pumps
- Operational limits: Depends on the pumped liquid for lubrication; do not run dry for more than 30 seconds
- Safety note: Do not pump gasoline or other flammable liquids
- Impeller note: Neoprene impeller is suitable for water and general-purpose pumping; if oil is present, a nitrile impeller should be used
Features
- Self-priming capability
- Will not airlock
- Easy to service and maintain
- Will tolerate abrasive wear
- Handles hard and soft solids without clogging
Spare Parts (Listed)
- 90062-0001: Major overhaul kit / rebuild kit, service kit (Neoprene) with Neoprene impeller, O-ring, and seal
- 17935-0001: Neoprene impeller
- 6407-0010: Shaft seal service kit (Neoprene) with Neoprene impeller, O-ring, and seal
-
