The Jabsco 777-0001 flexible impeller pedestal pump end delivers efficient, leak-resistant fluid transfer using a neoprene impeller with a lip-type seal. Built with a bronze pump body and marine-quality bronze and stainless steel construction, it supports general-purpose water pumping through 1 inch NPT internal ports, with a nominal flow rate of 23 GPM (87 LPM) at 1750 RPM. Self-priming capability up to 10 feet (3 m) from dry and up to 22 feet (6.7 m) when wetted helps simplify installation, while bi-directional pumping and the ability to handle solids in suspension enhance versatility for marine, industrial, and recreational use.
- Description
- Ask a Question
-

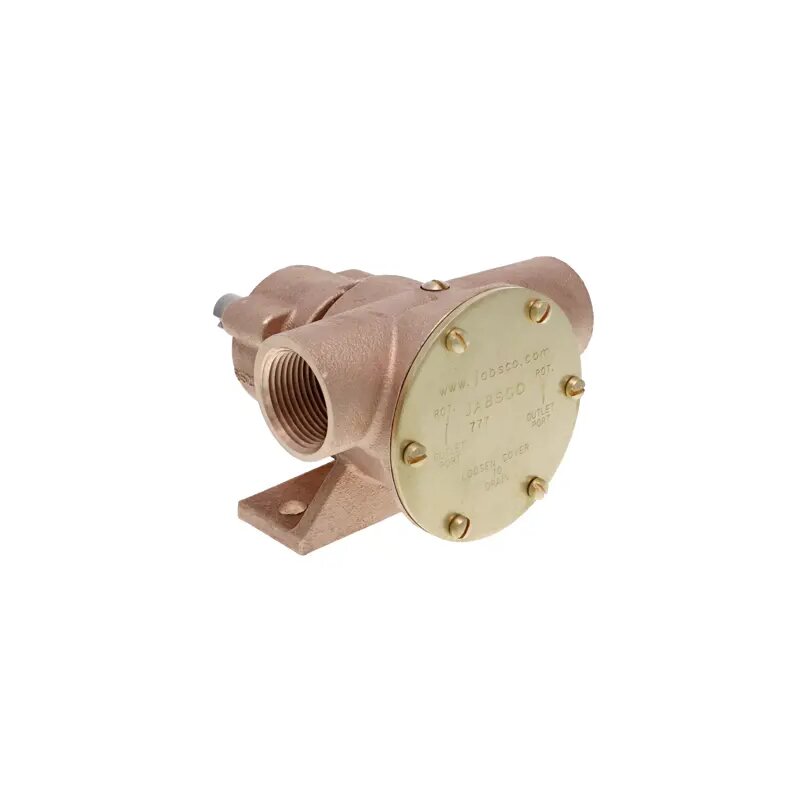

Jabsco 777-0001 Flexible Impeller Pedestal Pump Unit
The Jabsco 777-0001 is a bronze flexible impeller pedestal pump end designed for dependable fluid transfer in marine, industrial, and recreational environments. It is supplied as a bare shaft pedestal pump end only (without a motor) and uses the pumped liquid for lubrication, supporting consistent operation when applied correctly.
Application
- Washdown applications
- Circulation applications
- Fire duty applications onboard or dockside
- Engine cooling
- Bilge pumping
- Circulating water in bait tanks
- Utility dockside pumping
- Circulating and transferring
- Velocity mixing
- Pumping machine tool coolants
- Return spill
- Sump drainage
Fluid guidance: The neoprene impeller is suitable for water and general-purpose pumping. Do not pump light fraction petroleum derivatives, solvents, thinners, or highly concentrated or organic acids, as pump damage may result.
Technical Specifications
Brand Jabsco Part Number 777-0001 Pump Type Flexible Impeller Pedestal Pump (Pump End Only, No Motor) Pump Body Material Bronze Construction Marine Quality Bronze and Stainless Steel Impeller Material Neoprene Shaft Seal Type Lip Type Port Size 1 Inch NPT Internal Ports Nominal Flow Rate 23 GPM (87 LPM) at 1750 RPM Self-Priming (Dry) Up to 10 ft (3 m) Suction Lift (Wetted) Up to 22 ft (6.7 m) Minimum Speed for 10 ft Vertical Lift 800 RPM Neoprene Impeller Temperature Range 45°F to 180°F (7°C to 82°C) Shipping Weight 1.50 kg
Product Details
- Mounting: May be mounted in any position
- Rotation: Shaft rotation determines intake and discharge port location
- Factory assembly: Normally assembled for clockwise rotation (looking at the end cover)
- Priming note: Suction lines must be airtight or the pump will not self-prime
- Operating caution: Do not run dry for more than 30 seconds; lack of liquid can damage the impeller and pump components
Features
- Self-priming at low or high speeds
- Combines positive displacement priming capability with general transfer ability
- Pumps thin or viscous liquids
- Handles more solids in suspension than other types of rotary pumps
- Handles hard and soft solids without clogging
- Will tolerate abrasive wear
- Can pump in either direction
- Will not airlock
- Easy to service and maintain
- Replaceable cams, end covers, and wear plates for extended product life
Spare Parts Available
- Major Overhaul Kit / Rebuild Kit: Catalog 90010-0001, Service Kit, Neoprene, with Neoprene Impeller, O-Ring, and Lip Seal
- Impeller: Catalog 17937-0001, Neoprene Impeller
-
