ID
1323304
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
The Jabsco 60080-0024 146SL remote-controlled searchlight delivers high-intensity spot illumination for marine, industrial, and security applications using 24V DC power. It uses a 50W sealed-beam halogen lamp rated at 175,000 candlepower and is specified at 15 lux at 100 meters for strong long-range visibility. Remote helm control, wide horizontal sweep coverage, and a weatherproof, corrosion-resistant build (IP56) make it well-suited to harsh onboard environments, with a control panel and 4.5 meters of cable included and optional accessories available for dual helm stations.
- Description
- Ask a Question
-

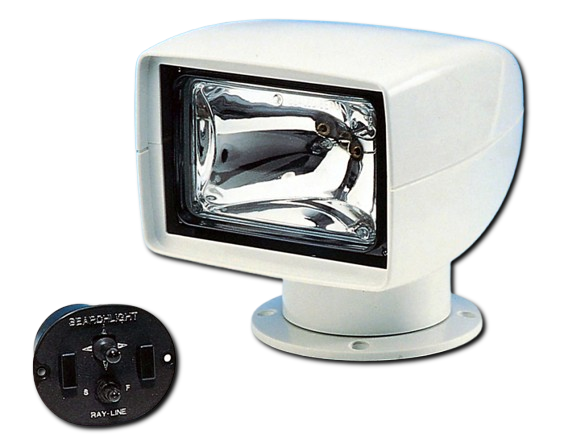

Jabsco 60080-0024 146SL Remote-Controlled 24V Searchlight Unit
The Jabsco 60080-0024 Series 146SL is a remotely controlled searchlight designed to provide powerful, focused lighting for demanding marine use, while also fitting industrial and security needs. With a high-output halogen sealed-beam lamp and wide sweep movement, it helps improve visibility for tasks such as locating buoys, moorings, and channel markers, and supports search and rescue use where long-range illumination is critical.
Application
- Marine applications (boats, yachts, and medium-sized yachts)
- Industrial applications
- Security applications
- Search and rescue operations
- Power boats (locating buoys, moorings, and channel markers)
- Larger motorhomes and bus conversions (pinpointing road signs, campsites, or use as a backup light)
Technical Specifications
Brand Jabsco Part Number 60080-0024 Series 146SL Product Portfolio Searchlights Type Searchlight Light Type Spot Operating Voltage 24V DC Current 2 amps Fuse Size 5 amps Bulb Power 50W halogen bulb Bulb Type Sealed-beam halogen lamp Candlepower 175,000 Light Output 15 lux at 100 meters Light Output (Also Listed) 1 lux at 1275 feet (386 m) Horizontal Sweep / Rotation 360° (also listed as 320°) Vertical Sweep / Adjustment 60° Ingress Protection IP56 Operating Temperature Range -20°C to 60°C (-4°F to 140°F) Mounting Flange-mounted Material Plastic Housing / Body Corrosion-resistant Lexan Surface Color White Dimensions (Listed) 260 mm (L) x 230 mm (W) x 240 mm (H) Dimensions (Also Listed) Approx. 25 cm (L) x 20.5 cm (W) x 21 cm (H) Packaged Dimensions 28.00 cm (L) x 39.00 cm (W) x 29.00 cm (H) Actual Weight 4.40 kg (approx. 4.90 kg packed) Weight (Also Listed) Approx. 3.5 kg Shipping Weight 5.00 kg
Product Details
- Control: Remote control from the helm station
- Remote Control Type (Listed): Waterproof / weather-resistant remote control; joystick or touchpad
- Included Control Panel Cable: 4.5 meters
- Cable (Also Listed): 15 ft cable, with optional extension cables
- Construction: Tough, weatherproof, and corrosion-resistant for harsh marine environments
Features
- High-output 50W halogen sealed-beam lamp rated at 175,000 candlepower
- Specified performance of 15 lux at 100 meters for long-distance visibility
- Wide sweep capability for broad coverage
- IP56 protection against dust and water ingress
- Flange mounting supports straightforward installation on various surfaces
- Designed for helm-station remote operation for convenient, accurate aiming
Included Items and Optional Accessories (As Listed)
- Included: Control panel and 4.5 meters of cable
- Included (Also Listed): Jabsco 43670-0004 remote control; connection cable; mounting screws and clamps
- Optional: Secondary control panel for dual helm stations
- Optional (As Listed): Secondary control unit (Jabsco 43670-0004)
- Optional (As Listed): Extension cables / extension cable harness (Jabsco 43990-)
- Spare Part (As Listed): Catalog # 18753-0455, bulb 12/24 volt
Note
The bulbs used in the searchlight are wear items and are subject to a limited warranty with the manufacturer.
-
