The Jabsco 60080-0012 146SL remote-controlled marine searchlight delivers high-intensity illumination for 12V DC systems, combining 175,000 candlepower with rated output of 15 lux at 100 meters for confident night navigation. Its sealed-beam halogen spot lamp and wide horizontal rotation (stated as 360° sweep) help cover large areas from the helm, while the weatherproof, corrosion-resistant construction supports reliable operation in harsh marine conditions. Supplied with a control panel and 4.5 meters of cable, it can also be expanded for dual helm stations using an optional secondary control panel and extension cable.
- Description
- Ask a Question
-

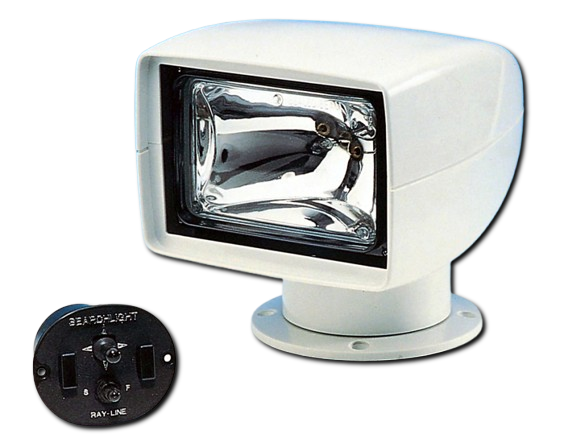

Jabsco 60080-0012 146SL Remote-Controlled Marine Searchlight
The Jabsco 60080-0012 Series 146SL searchlight is a 12V DC, helm-controlled lighting solution built to enhance visibility for nighttime navigation and on-deck spotting. Using a sealed-beam halogen lamp and remote-controlled aiming, it provides focused illumination with a rugged, weatherproof design intended for demanding marine environments.
Application
- Marine nighttime navigation and spotlighting
- Locating buoys, moorings, and channel markers
- Designed for installation on boats, yachts, and marine vehicles
- Helm-station operation via remote control or control panel
Compatibility
- 12V DC electrical systems
- Compatible with most standard marine control systems (as stated)
- Supports dual helm stations with an optional secondary control panel and extension cable harness
Technical Specifications
Series 146SL Operating Voltage 12V DC Current (Stated) 3.6 A Bulb Type Sealed-Beam Halogen Lamp Bulb Power 50 W Maximum Power Consumption 50 W Beam Type Spot Beam Angle (Stated) 15° Spot Beam Candlepower 175,000 Light Output (Stated) 15 lux at 100 m Light Output (Stated) 1 lux at 386 m (1275 ft) Horizontal Rotation (Stated) 360° Sweep Horizontal Rotation (Stated) 320° Vertical Sweep (Stated) 60° Fuse Size 10 A IP Rating IP67 Operating Temperature Range -10°C to 40°C (14°F to 104°F) Remote Control Range (Stated) Up to 100 m (328 ft) Power Cable Length (Stated) 4.5 m (14.8 ft / 15 ft stated) Dimensions (Stated) Length 260 mm, Width 230 mm, Height 240 mm Dimensions (Stated) Length approx. 25 cm, Width approx. 20.5 cm, Height approx. 21 cm Weight (Stated) 4.4 kg (approx. 4.9 kg packed) Weight (Stated) Approx. 3.5 kg Shipping Weight (Stated) 5.00 kg Materials (Stated) High-Impact UV-Stabilized Plastic and Corrosion-Resistant Metals; Corrosion-Resistant Lexan Housing (Stated) Finish (Stated) White
Product Details
- Control: Remote-controlled rotation and light adjustment; controlled from the helm station
- Construction: Weatherproof and corrosion-resistant (as stated)
- Mounting: Easily mounts to horizontal or vertical surfaces (as stated)
- Included: Control panel and 4.5 meters of cable
- Optional: Secondary control panel for dual helm stations (Jabsco 43670-0004 stated)
- Optional: Extension cables in various lengths (Jabsco 43990- stated)
- Spare Part (Stated): Catalog 18753-0455 bulb, 12/24 volt
- Note (Stated): The bulbs are wear items and are subject to a limited warranty with the manufacturer.
Features
- High-output sealed-beam halogen spotlight performance rated at 175,000 candlepower
- Wide-area aiming with stated horizontal rotation up to 360° and vertical sweep of 60°
- Rugged, weatherproof, corrosion-resistant build for harsh marine conditions
- Supplied with a control panel and cable for straightforward installation
- Expandable control setup with optional dual helm station support
-
