The Jabsco 62042-4006 electric searchlight assembly with control panel delivers powerful, remote-controlled illumination for private boating and commercial shipping using 24V DC power. Its heavily chromed brass housing is built for seawater resistance, while a stainless steel socket and a protected drivetrain help support dependable operation. With dual-speed control for rapid scanning and precise aiming plus an internal brake system to hold the beam on target, it provides 250 W sealed-beam output rated at 500,000 cd and 1 lux at 719 m, and it includes the Maritec Control Panel 28601 for multi-station control capability.
- Description
- Ask a Question
-

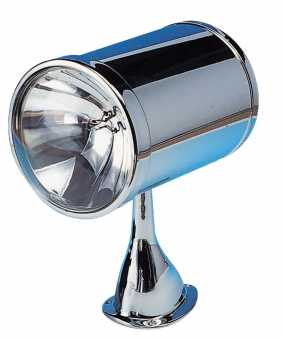

Jabsco 62042-4006 8 Inch 24V Remote Searchlight System
The Jabsco 62042-4006 is an electric, remote-controlled marine searchlight designed to support confident navigation and target illumination on the water. Built for both leisure craft and professional vessels, it combines high-intensity output with controllable beam movement and durable, seawater-resistant materials.
Application
- Private boating
- Commercial shipping
- Leisure, commercial, and patrol crafts
- Remote mounting searchlight electrically controlled from a helm station
- Remote control suitable for use with multiple control stations
Technical Specifications
Brand Jabsco Part Number 62042-4006 Product Portfolio Searchlights Voltage 24 Volt DC Light Output 250 W (Sealed Beam) Luminous Intensity 500,000 cd Candle Power 500,000 Illuminance Rating 1 Lux at 719 m Horizontal Sweep 450° Vertical Sweep 70° Rotatable (Horizontal) 370° Pivotable (Vertical) 60° Housing Material Heavily Chromed Brass Surface Appearance Chrome Socket Material Stainless Steel Searchlight Dimensions 280 x 210 x 360 mm Dimensions (Approx.) 25 cm x 20 cm x 41 cm Cable Length 2.5 m Connection Cable (Approx.) 8 ft / 2.4 m Weight 5 kg Weight (Approx.) 6 kg Shipping Weight 6.50 kg
Product Details
- Type: Electric remote control searchlight (8 inch)
- Control: Dual-speed control options (slow/fast) for targeted operation
- Beam Holding: Internal brake system helps keep the light fixed on target
- Drive Protection: Protected drivetrain with overload protection (Clutch-A-Matic feature)
- Included Control Panel: Maritec Control Panel 28601
Features
- Remote control capability for flexible operation, including multi-station use
- Brass chromed construction supports seawater resistance
- Variable speed control enables rapid searching and precise targeting
- Single control lever and joystick-style control described for vertical and horizontal movement
- Light head may be moved manually without damage to the drive unit (as described)
Included in Delivery
- Jabsco searchlight 62042-4006, 8 inch, 24 Volt
- Remote control 60070-0000 (waterproof)
- Connection cable, approximately 8 ft / 2.4 m
- Mounting screws and clamps
- Base gasket for mounting
Note
The bulbs used in the searchlight are consumable items and are subject to a limited manufacturer warranty.
-
