ID
1337658
$ 1,819.46
1-2 weeks delivery time
-
+

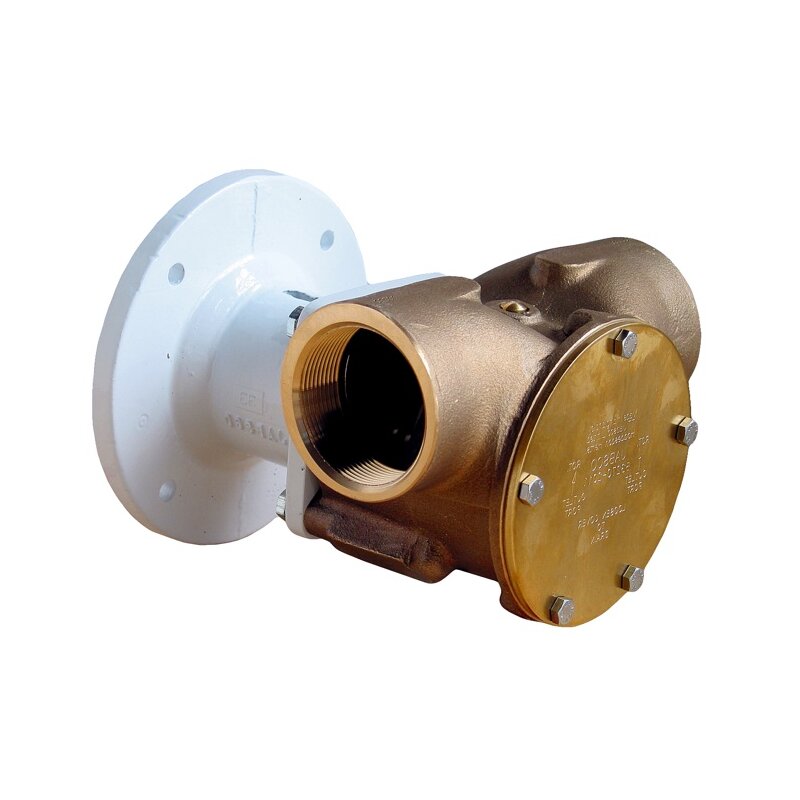

The Jabsco 53270-2013 bronze flexible impeller pump head is a self-priming size 270 unit built for Jabsco 53270 series motor-pump units, delivering up to 270 liters per minute with self-priming up to 4.5 m. A bronze pump body with flange adapter supports IEC 71 electric motor installations, while the included stainless steel shaft extension, mechanical seal, 1/1 eccentric, and oil-resistant nitrile impeller help ensure dependable operation. 2" BSP female threaded connections accept a matching male-thread fitting (not included), and the listed shipping weight is 9.00 kg.
- Description
- Ask a Question
-

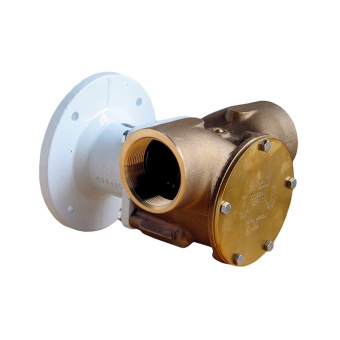

Jabsco 53270-2013 Bronze Flexible Impeller Pump Head Unit
The Jabsco 53270-2013 is a bronze flexible impeller pump head with a flange adapter, built in size 270 for circulation and transfer duties where reliable self-priming performance is required. It is designed to integrate with Jabsco 53270 series motor-pump units and provides practical connection and mounting details for common marine and industrial drive setups.
Application
- Self-priming flexible impeller pump, size 270
- Compatible with Jabsco 53270 series motor-pump units
Compatibility
- Suitable for electric motors with IEC 71 B3 D100 frame (160 mm flange, 130 mm bolt circle, 9 mm holes)
- Suitable for electric motors with IEC 71 B14 D100 frame (160 mm flange, 130 mm bolt circle, 9 mm holes)
Technical Specifications
Brand Jabsco Part Number 53270-2013 Pump Size 270 Self-Priming Capability Up to 4.5 m Maximum Flow Rate Up to 270 liters/minute Connections 2" BSP female thread (male-thread fitting not included) Shipping Weight 9.00 kg
Product Details
- Pump body: Bronze, with flange adapter
- Shaft extension: Included stainless steel stub shaft
- Seal: Mechanical seal
- Configuration: 1/1 eccentric
- Impeller: Included oil-resistant nitrile impeller
Features
- Self-priming design for easier start-up
- Bronze construction for robust service
- Flange adapter supports IEC 71 motor mounting formats
- Ready-to-install pump head supplied with key internal components
-
