ID
1334598
$ 1,110.75
1-2 weeks delivery time
-
+
The Jabsco 50010-2411 bronze AC motor pump unit delivers steady, non-pulsating transfer for a wide range of industrial, plumbing, contracting, agricultural, and food processing tasks. Its bronze body with a neoprene impeller and stainless steel shaft extension handles soft solids and supports high viscosities up to 50,000 centiPoise, while 230 VAC power and an IEC 72 180W B3/B14 63 Frame IP55 motor provide dependable operation. Connection options include a 3/8″ BSP internal thread and 19 mm (3/4″) bore hose connections for flexible installation.
- Description
- Ask a Question
-

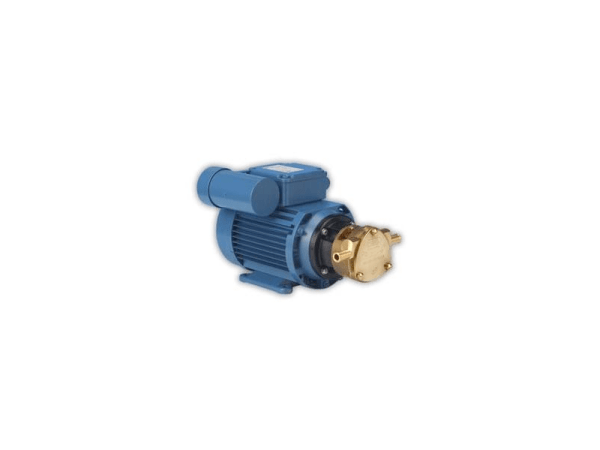

Jabsco 50010-2411 Bronze 230 VAC Flexible Impeller Pump Unit
The Jabsco 50010-2411 is a versatile bronze pump unit built to move a variety of fluids across multiple work environments. Using a flexible impeller design, it is designed to deliver a smooth, non-pulsating flow while managing soft solids and supporting demanding fluid viscosities.
Application
- Industrial: Industrial filling systems, utility shop pumping, transfer systems, recharging water softeners, sump emptying, cooling tower circulation, line cleaning, heat exchangers, air scrubbers, laboratory circulation, and oil changing
- Plumbing: Emptying clogged drains, sumps, sinks, tubs, and water closets
- Contractors: Cement mixing, wash down equipment, filling and emptying tanks, and emptying basements
- Agricultural: Filling water tanks, flushing animal pens, and plumbing water for livestock
- Food, Beverage & Dairy: Vending machines, refrigeration condensate pump out, wash down equipment, and floor cleaning
Technical Specifications
Power Supply 230 VAC Maximum Viscosity Up To 50,000 centiPoise Flow Type Non-Pulsating Thread 3/8″ BSP Internal Thread Hose Connection 19 mm (3/4″) Bore Motor Standard IEC 72 Motor Power 180 W Motor Mounting B3/B14 Motor Frame 63 Frame Motor Protection Rating IP55
Product Details
- Pump Body: Bronze
- Impeller Material: Neoprene
- Shaft Extension: Stainless Steel
- Seal Type: Nitrile Lip Seal
- Internal Components: Motor bearings
- Handling Capability: Designed to manage soft solids without clogging
Features
- Bronze construction for durable service
- Flexible impeller design suited to a broad range of applications
- Supports high-viscosity fluids up to 50,000 centiPoise
- Provides steady, non-pulsating flow
- Multiple connection options with 3/8″ BSP internal thread and 19 mm (3/4″) bore hose connections
- 230 VAC operation with an IEC 72 180W IP55 motor
-
