ID
1337553
$ 547.89
1-2 weeks delivery time
-
+
The Jabsco 50005-00-8413 flexible impeller pump delivers self-priming performance (up to 1.5 m) with output up to 4.5 l/min in a durable bronze pump body with flange adapter. It is designed for size 005 applications, includes an oil-resistant nitrile impeller plus a stainless steel shaft extension, and supports direct hose connection or BSP threaded fittings for flexible installation. Suitable for electric motors with an 11 mm shaft in 63 B14 configuration (90 mm flange, 75 mm bolt circle, 6 mm holes) and compatible with Jabsco 50005 series motor pump units.
- Description
- Ask a Question
-

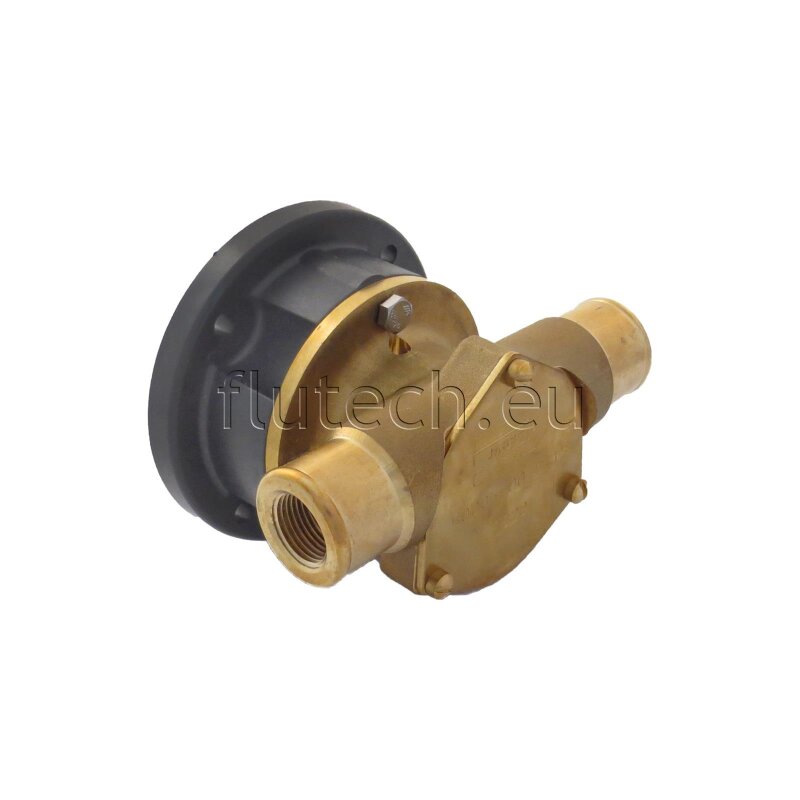

Jabsco 50005-00-8413 Flexible Impeller Pump With Flange-Mounted Bronze Body
The Jabsco 50005-00-8413 is a self-priming flexible impeller pump (size 005) built around a bronze pump body with a flange adapter. It is engineered for reliable transfer performance and installation versatility, with included components that support use with suitable electric motors and Jabsco 50005 series motor pump units.
Application
- Self-priming flexible impeller pumping (size 005)
- Compatible with Jabsco 50005 series motor pump units
Compatibility
- Electric motors with 11 mm shaft, 63 B14 (90 mm flange, 75 mm bolt circle, 6 mm holes)
- Jabsco 50005 series motor pump units
- Jabsco 50005-8413 motor pump unit
Technical Specifications
Brand Jabsco Part Number 50005-00-8413 Pump Type Self-Priming Flexible Impeller Pump Size 005 Self-Priming Height Up to 1.5 m Output Up to 4.5 l/min Material Bronze Mounting Type Flange Impeller Material Nitrile (Oil Resistant) Impeller Hub Single Flat Drive Connections 1/2" BSP; 3/8" BSP; 1" hose connection Ports 9.5 mm (3/8") BSP threaded ports Hose Connection Option 25 mm (1") ID hose direct to the ports Shipping Weight 1.30 kg Product Portfolio Impeller Pumps; General Purpose Pumps
Product Details
- Bronze pump body with flange adapter
- Includes stainless steel shaft extension
- Includes oil-resistant nitrile impeller
- Connections support direct 25 mm (1") ID hose or use via 9.5 mm (3/8") BSP male threaded fitting (fitting not included)
Features
- Self-priming design for easier start-up (up to 1.5 m)
- Output up to 4.5 l/min for compact transfer duties
- Flange mounting supports integration with compatible electric motor configurations
-
