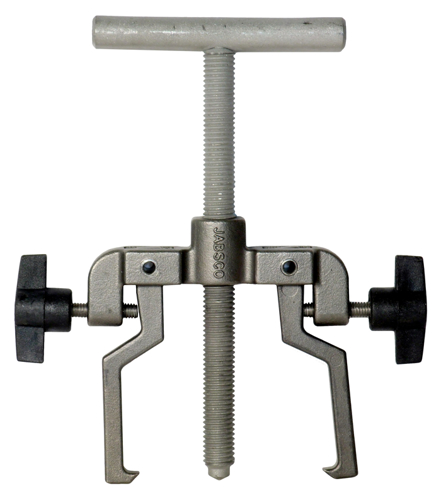

Jabsco 50070-0200 - Impeller Removal Tool 65-118mm Diameter

ID 1331472

$ 167.48

1-2 weeks delivery time

- +

Add to cart

The Jabsco 50070-0200 impeller removal tool supports safe impeller extraction for diameters from 65 mm to 118 mm (2-1/2" to 4-5/8"), helping protect the pump body from damage caused by unsuitable tools such as screwdrivers. Built for larger Jabsco pump sizes 200, 270, 370, 470, and 500, it simplifies maintenance by allowing impeller removal after the end cover screws are removed, including in cramped spaces. The tool is specified with a 118 mm clamping range, features all-stainless-steel construction, and has a shipping weight of 0.80 kg.

Description
Ask a Question

Jabsco 50070-0200 Impeller Extraction Tool for Large Pumps

The Jabsco 50070-0200 is an impeller removal tool designed to pull impellers safely, helping prevent pump damage that can occur when using unsuitable tools during impeller extraction. It is intended to make routine service faster and safer, even when access is limited.

Application

Impeller removal for diameters from 65 mm to 118 mm (2-1/2" to 4-5/8")
Suitable for maintenance on larger Jabsco pump models
Helps avoid pump body damage associated with using screwdrivers for extraction

Compatibility

Jabsco size 200 pumps
Jabsco size 270 pumps
Jabsco size 370 pumps
Jabsco size 470 pumps
Jabsco size 500 pumps
Fits all makes

Technical Specifications

Brand	Jabsco
Order Number	00320253
Supplier Code	50070-0200
Barcode	671880520942
Tool Type	Impeller Removal Tool
Impeller Diameter Range	65–118 mm (2-1/2" to 4-5/8")
Clamping Range	118 mm
Material	All Stainless Steel
Shipping Weight	0.80 kg

Product Details

Designed to remove the impeller after the end cover screws are removed
Supports impeller removal in cramped spaces

Features

Helps avoid damage to the pump during impeller extraction
Designed for larger Jabsco pump sizes 200, 270, 370, 470, and 500
All-stainless-steel construction
