ID
1331393
$ 203.50
1-2 weeks delivery time
-
+
The Jabsco 35115-0020 marine ventilation blower delivers 3 m³/min (105 CFM) airflow from a 12V unit designed for reliable, quiet operation. Delrin rotors help maintain dimensional stability, while the corrosion-resistant, reinforced plastic housing supports long service life in marine environments. With 75 mm ducting connections, flat-surface flange mounting, approximately 4.4A current draw, and ISO 8846 MARINE and USCG 183.410 ignition protection compliance, it is suited for safe ventilation in gasoline engine compartments.
- Description
- Ask a Question
-

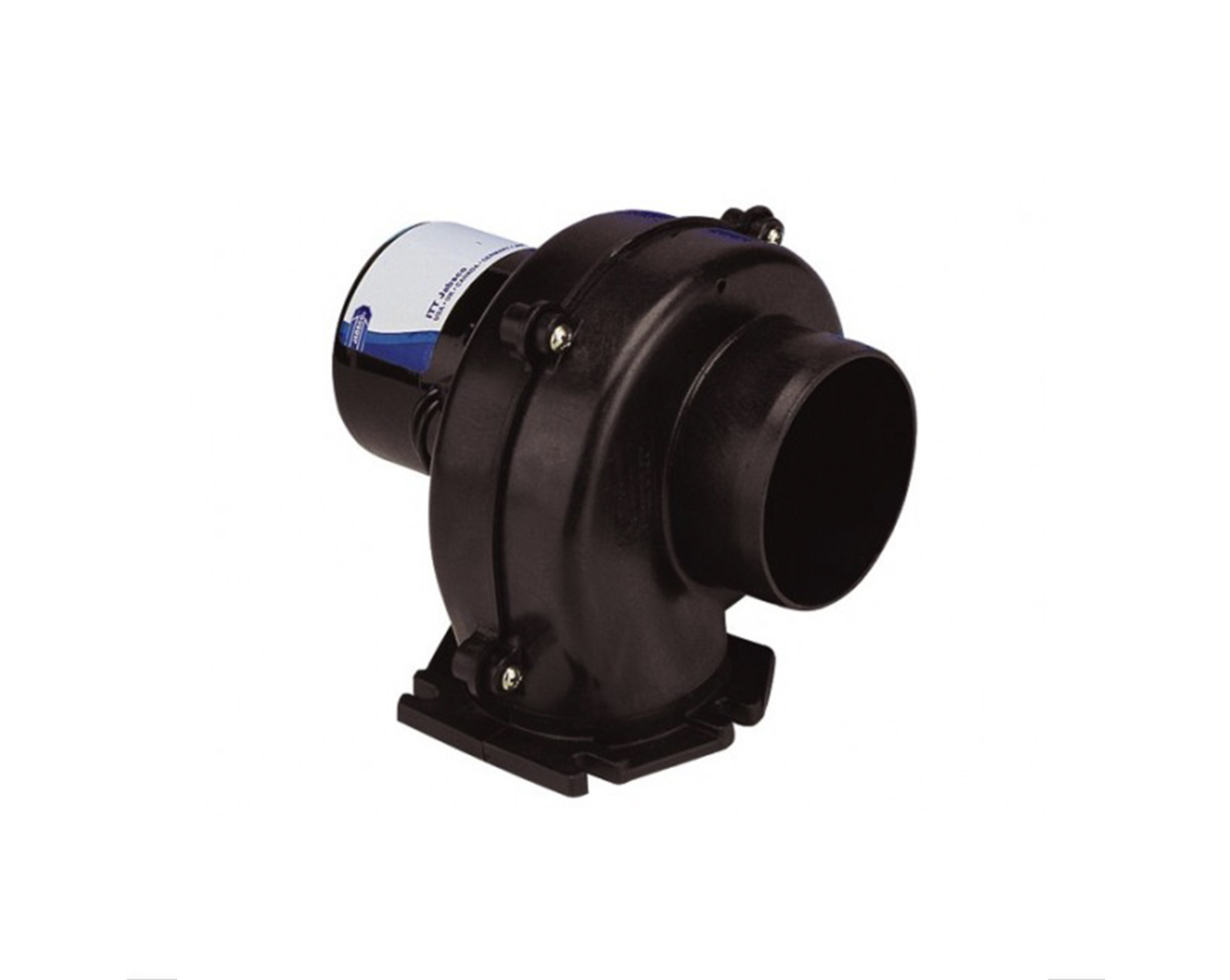

Jabsco 35115-0020 12V Marine Ventilation Blower Unit
The Jabsco 35115-0020 is a compact 12V blower built to provide dependable ventilation on board. It combines quiet-running Delrin rotors with a corrosion-resistant housing and ignition protection compliance, making it a strong choice for marine spaces where safe, consistent airflow matters.
Application
- Ventilation in gasoline engine compartments (ignition protection compliant)
- Engine room ventilation
- Fuel compartment air extraction
- Galley ventilation
- Head ventilation
- Boat bilge ventilation
Compatibility
- Connections for 75 mm (3 inch) ducting
- Mounts on any flat surface; outlet flange mounts directly on a bulkhead
Technical Specifications
Part Number 35115-0020 Voltage 12 Volts (12V DC) Airflow (Open Flow) 3 m³/min (105 CFM) Current Draw Approximately 4.4A; 4.0A (nominal) Recommended Fuse Size 6A Ducting Connection 75 mm (3 inch) Dimensions (H x W x L) 12.1 cm x 14.0 cm x 17.8 cm Dimensions (Listed) 170 mm (L) x 140 mm (H) x 120 mm (W) Packaged Dimensions (L x H x W) 22.00 cm x 17.00 cm x 19.00 cm Weight 1.24 kg Packed Weight Approx. 1.74 kg Power Rating 48W Operating Temperature Range -10°C to 60°C (14°F to 140°F) IP Rating IP44 (splash-proof) Ignition Protection Standards ISO 8846 MARINE; USCG 183.410 compliant Order Number 00320278 Supplier Code 35115-0020 Barcode 671880029735
Product Details
- Mounting: Flange mount; outlet flange mounts directly on a bulkhead; mounts on flat surfaces
- Rotor Material: Delrin rotors for quiet running and dimensional stability
- Housing: Durable reinforced plastic housing
- Construction: Corrosion-resistant materials for longevity in marine environments
- Motor: 12V DC motor with ball bearings
Features
- High-volume air intake or extraction with substantial airflow
- Quiet operation suited to onboard spaces
- Ignition protection compliance for safer use in gasoline engine compartments
- Compact, lightweight form for easier installation in confined areas
-
