The Jabsco 28440-2114 pump head kit is a replacement pump end (motor not included) built for versatile transfer duties where corrosion resistance and gentle handling matter. Its 316 stainless steel construction pairs with a Viton impeller and a carbon/ceramic mechanical seal, while 1-1/2 inch BSP ports support straightforward integration. Designed for demanding media, it self-primes from dry up to 16.4 ft, delivers flow up to 52.8 GPM and pressure up to 58 psi, handles solids up to 0.4 inch, and tolerates viscosities up to 10,000 cP with non-pulsating flow proportional to speed.
- Description
- Ask a Question
-

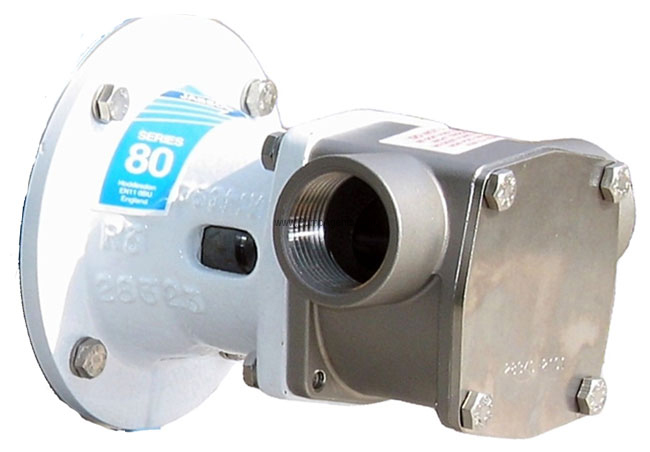

Jabsco 28440-2114 Stainless Steel Pump Head Replacement Unit
The Jabsco 28440-2114 is a stainless steel pump head kit supplied as a replacement pump end only (without a motor). Built around a flexible impeller design, it provides gentle pumping action for reliable handling of suspended solids, abrasive media, foams, emulsions, and gas-enriched aqueous materials across a wide viscosity range.
Application
- 28000 series pump applications
- Chemical industry media including alcohols, esters, organic-based solutions, sols, slurries, and emulsions
- Process duties such as transfer, filtration, sampling, mixing, and metering
- Typical fluids and uses mentioned: acids and alkalis, copper sulphate, methyls, industrial chemicals, resins, oils, fatty acids, brine, detergents, soaps, hydrogen peroxide, paints, dyes, inks, varnishes, lacquers, solvents, filling, recirculation and agitation, spillage return, spraying, coating, and shear-sensitive fluids with small hard or soft solids in suspension
Compatibility
- Fits IEC standard motor mount B3
- Fits IEC standard motor mount B14
- Motor frame 90
Technical Specifications
Catalog Number 28440-2114 Construction 316 stainless steel Impeller Material Viton Mechanical Seal Carbon/ceramic mechanical seal Port Size 1-1/2 inch BSP Self-Priming (Dry) Up to 16.4 ft Maximum Flow Up to 52.8 GPM Maximum Pressure Up to 58 psi Solids Handling Hard or soft solids up to 0.4 inch maximum diameter Viscosity Capability Up to 10,000 cP
Product Details
- Replacement pump end only (motor not included)
- Gentle pumping action supports excellent suspended-solids handling capability
- Capable of pumping very abrasive media, foams, emulsions, and gas-enriched aqueous materials
- Non-pulsating flow proportional to speed
- Minimal shear to thixotropic fluids
- Tolerates abrasive wear with replaceable wearplate
- Designed to be easy to service and maintain
Features
- Pump body: 316 stainless steel
- Impeller: Viton
- Seal type: Carbon/ceramic mechanical seal
- Ports: 1-1/2 inch BSP
Spare Parts Mentioned
- Impeller (Viton), Catalog Number: 14346-0014B
-
