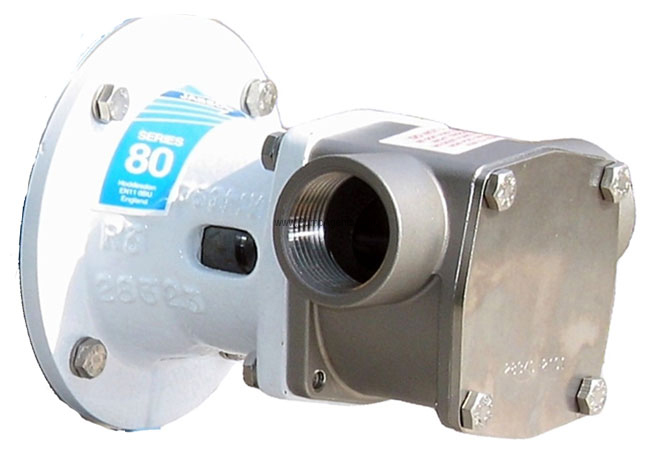

Jabsco 28440-2113 - Stainless Steel Pump Head Kit

ID 1337023

$ 3,721.56

1-2 weeks delivery time

- +

Add to cart

The Jabsco 28440-2113 stainless steel pump head kit replaces the pump end only (no motor included) and delivers a gentle, non-pulsating pumping action for versatile transfer applications. Built with 316 stainless steel, a nitrile impeller, and a carbon/ceramic mechanical seal, it supports abrasive media, foams, emulsions, and gas-enriched aqueous materials while handling viscosities up to 10,000 cP. With 1-1/2 inch BSP ports, self-priming up to 16.4 ft, flow up to 52.8 GPM, pressure up to 58 psi, and solids handling up to 0.4 inch, it is designed for dependable performance and easy service in demanding environments.

Description
Ask a Question

Jabsco 28440-2113 Stainless Steel Pump Head Replacement Kit

The Jabsco 28440-2113 pump head kit is a replacement pump end only (supplied without a motor) designed for flexible impeller pumping duties. Its gentle pumping action supports excellent suspended-solids handling, while the robust construction is suited for demanding process and transfer tasks across a wide range of fluids.

Application

Chemical industry use with alcohols, esters, and other organic-based solutions
Abrasive suspensions such as sols, slurries, and emulsions
Inks, dyes, paints, viscous adhesives, and plasticisers
Process transfer duties, filtration, sampling, mixing, and metering
Transfer, filling, recirculation and agitation, spillage return, spraying, coating, and filtration
Acids and alkalis, industrial chemicals, resins, oils, fatty acids, brine, detergents, soaps, hydrogen peroxide, copper sulphate, methyls, and solvents
Shear-sensitive fluids and small hard/soft solids in suspension

Compatibility

Fits IEC standard motor B3 mounting
Fits IEC standard motor B14 mounting
Motor frame size: 90

Technical Specifications

Pump Body Material	316 stainless steel
Impeller Material	Nitrile
Shaft Seal	Carbon/ceramic mechanical seal
Port Size	1-1/2 inch BSP
Self-Priming Capability	From dry up to 16.4 ft
Maximum Flow	Up to 52.8 GPM
Maximum Pressure	Up to 58 psi
Solids Handling	Hard or soft solids up to 0.4 inch maximum diameter
Maximum Viscosity	Up to 10,000 cP

Product Details

Catalog Number: 28440-2113
Configuration: Replacement pump end only (without a motor)
Pumping Style: Gentle pumping action for excellent suspended-solids handling capability
Media Capability: Can pump very abrasive media, foams, emulsions, and gas-enriched aqueous materials
Wear Handling: Tolerates abrasive wear with a replaceable wearplate
Flow Characteristic: Non-pulsating flow, proportional to speed
Fluid Handling: Minimal shear to thixotropic fluids
Serviceability: Easy to service and maintain
Availability: Spare parts available

Features

316 stainless steel construction for durability in demanding applications
Nitrile impeller and carbon/ceramic mechanical seal for dependable sealing and pumping performance
Versatile and adaptable design suited to a wide range of viscosities and process fluids
