The Jabsco 28440-2115H3 Pureflo S200 flexible impeller motor pump unit delivers durable, chemical-resistant pumping for demanding industrial fluid handling, including abrasive suspensions, inks, paints, and viscous fluids. Built with 316 stainless steel body and shaft materials plus a hard-faced mechanical seal, it supports transfer, filling, recirculation, and filtration duties. A 400V, 3-phase, 50Hz motor (1420 rpm, 1.5 kW) drives output up to 170 litres/minute at 3 m head, with self-priming up to 5 metres and 1.5 inch BSP ports for straightforward integration.
- Description
- Ask a Question
-

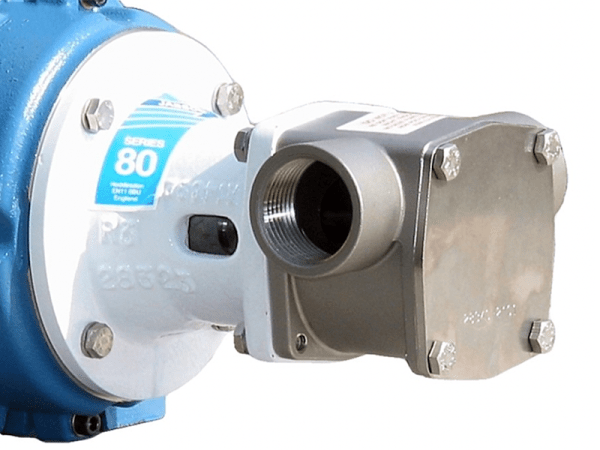

Jabsco 28440-2115H3 Pureflo S200 Flexible Impeller Motor Pump Unit
The Jabsco Pureflo S200 stainless steel pedestal pump unit is designed for tough industrial service where chemical resistance and long-term durability matter. With 316 stainless steel wetted components and a long-life mechanical shaft seal, it is well suited to handling abrasive suspensions, slurries, and viscous fluids across a wide range of plant and process tasks.
Application
- Handling abrasive suspensions and slurries
- Soaps and foaming solutions
- Inks, dyes, and paints
- Viscous adhesives
- Acids and alkalis, compounds, copper sulphate, methyls, alcohols
- Industrial chemicals, resins, oils, fatty acids, brine
- Detergents, soaps, hydrogen peroxide
- Paints, dyes, inks, varnishes, lacquers, solvents
- Transfer, filling, recirculation and agitation, spillage return, spraying, coating, filtration
- Viscous, shear-sensitive fluids, small hard and soft solids in suspension
Technical Specifications
Port Type 1.5 inch BSP ports Self Priming Up To 5 Metres Motor Power 400V, 3 Phase, 50Hz, 1420rpm, 1.5 kW Output Up to 170 litres/minute at 3 m head Maximum Differential Pressure 1.7 bar
Product Details
Body Material 316 Stainless Steel Shaft Material 316 Stainless Steel, Shaft Extension Impeller Neoprene Seal Elastomer Nitrile Seal Type Tungsten Carbide/Ceramic Hard Faced Mechanical Seal
Features
- Chemical-resistant construction using 316 stainless steel parts
- Flexible impeller design for handling viscous and shear-sensitive fluids
- Hard-faced mechanical seal for long service life
- Self-priming capability up to 5 metres for easier installation
-
