Bennett BOLT Electric Trim Tab Systems

ID 1361205

$ 1,566.52

1-2 weeks delivery time

Size, mm:

300×300 mm
300×100 mm
300×230 mm
450×300 mm
450×230 mm
600×300 mm
600×230 mm
150×300 mm
230×300 mm

Item:

Standard
Edge Mount

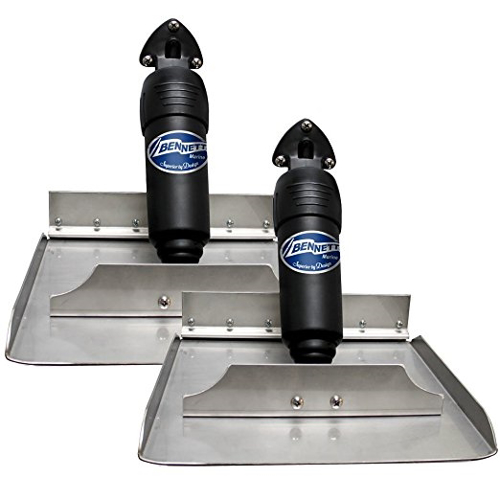

The Bennett BOLT Electric Trim Tab Systems are 12V trim tab kits for boats from 4.5 to 10.2 m, available in standard and edge mount versions. The range includes sizes from 12x4" (30x10 cm) to 24x12" (60x30 cm), with edge mount options 6x12" (15x30 cm), 9x12" (23x30 cm), and 12x12" (30x30 cm) for installations with limited transom height. Each kit includes two electric actuators and trim tab planes. Controls are sold separately. Designed to improve planing, reduce bow rise, correct listing, and enhance fuel efficiency.

Description
Ask a Question

Bennett BOLT Electric Trim Tab Systems – 12V Electric Trim Tabs for Boats 4.5–10.2 m, Standard & Edge Mount

The Bennett BOLT Electric Trim Tab Systems are 12V trim tab kits designed to improve boat handling, planing performance, stability, and fuel efficiency. This range includes standard and edge mount systems for boats from 4.5 to 10.2 meters, with multiple tab sizes available for different hulls and installation requirements.

The systems use a fully electric, leak-free actuator design and do not require a hydraulic pump. Edge mount versions are intended for boats with limited transom height, while standard versions cover a broad range of common installations. All kits include two actuators and trim tab planes. Controls are sold separately.

Key Features

12V electric trim tab systems
Leak-free electric actuator design
No hydraulic pump required
Improves planing speed and fuel efficiency
Reduces bow rise and helps correct listing
Improves stability and ride comfort
Available in standard and edge mount configurations
Suitable for boats from 4.5 to 10.2 m
Controls sold separately

Included in the Kit

2 × electric actuators
2 × trim tab planes
Mounting hardware

Available Variants

Model	Tab Size	Size (cm)	Mount Type	Boat Length
BOLT124	12x4"	30x10 cm	Standard	4.5–5.8 m
BOLT129	12x9"	30x23 cm	Standard	5.2–6.0 m
BOLT1212	12x12"	30x30 cm	Standard	5.8–7.3 m
BOLT189	18x9"	45x23 cm	Standard	5.8–7.3 m
BOLT1812	18x12"	45x30 cm	Standard	6.7–8.3 m
BOLT249	24x9"	60x23 cm	Standard	6.7–8.3 m
BOLT2412	24x12"	60x30 cm	Standard	8.4–10.2 m
BOLT612ED	6x12"	15x30 cm	Edge Mount	4.5–6.0 m
BOLT912ED	9x12"	23x30 cm	Edge Mount	5.1–6.3 m
BOLT1212ED	12x12"	30x30 cm	Edge Mount	6.3–7.2 m

Technical Specifications

System Type: Electric Trim Tab System
Voltage: 12V
Mounting Options: Standard, Edge Mount
Boat Length Range: 4.5–10.2 m
Trim Tab Size Range: from 12x4" (30x10 cm) to 24x12" (60x30 cm)

Compatibility Notes

Controls are not included and must be ordered separately
Compatible with Bennett BOLT control systems
