ID
1361216
$ 1,060.63
1-2 weeks delivery time
Item:
- Hydraulic
- Electric BOLT

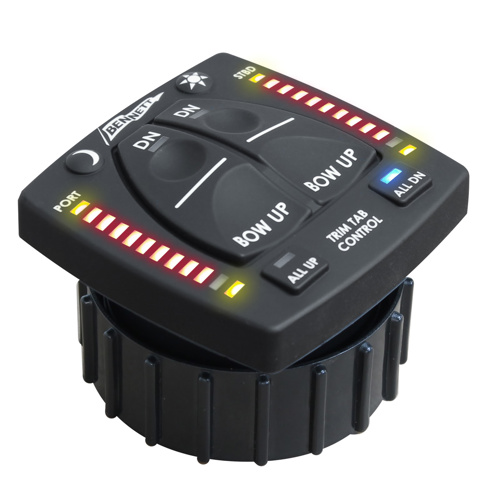

The Bennett Integrated Helm Control Switch (OBI9000E / OBI9000H) is an all-in-one trim tab control unit with built-in LED position indicator. Available for BOLT electric and hydraulic trim tab systems. Combines keypad, control electronics, and indicator in a compact 71.5×71.5 mm unit with 63.5 mm cut-out and 58 mm installation depth. Supports automatic tab retraction and real-time position feedback.
- Description
- Ask a Question
-
Bennett Integrated Helm Control Switch with Indicator (OBI9000E / OBI9000H) – All-in-One Trim Tab Control
The Bennett OBI9000 series integrated helm control switches (OBI9000E / OBI9000H) combine trim tab control, electronics, and position indication into a single compact unit. Designed to eliminate the need for external control modules, these systems simplify installation and improve usability.
Both versions provide intuitive control with LED position indication for real-time feedback. Automatic tab retraction when the ignition is switched off helps protect the system and ensures correct tab positioning.
Key Features
- All-in-one helm control with integrated electronics and indicator
- LED position indication for real-time trim tab feedback
- “All Up” and “All Down” control functions
- Automatic tab retraction when ignition is off
- Compact design with no external control box required
- Space-saving installation with single mounting point
- Water-resistant construction for marine environments
Applications
- Trim tab control and monitoring systems
- Replacement helm control units
- Upgrade from standard trim tab switches
Available Variants
Model System Compatibility External Dimensions OBI9000E BOLT Electric Trim Tab Systems 71.5 × 71.5 mm OBI9000H Hydraulic Trim Tab Systems 71.5 × 71.5 mm
Technical Specifications
- Type: Integrated Helm Control Switch with Indicator
- Functions: Control + Position Indicator + Auto Retract
- Cut-out Diameter: 63.5 mm
- Installation Depth: 58 mm
- Compatibility: Electric (BOLT) or Hydraulic systems
-
