ID
684153
$ 1,623.80
1-2 weeks delivery time
Size, mm:
- 200x250
- 250x300
The Bennett Sport (M80 / M120) Limited Space Hydraulic Trim Tab Systems are compact hydraulic trim tab kits designed for small boats and limited transom space. Available in two sizes: M80 (200×250 mm) and M120 (250×300 mm). Each system includes stainless steel trim tabs, actuators (290 mm length, 58 mm stroke), hydraulic power unit, 6 m hoses, 6.5 m wiring, and a control panel with toggle switches. Provides up to 30% more lift compared to conventional trim tabs.
- Description
- Ask a Question
-

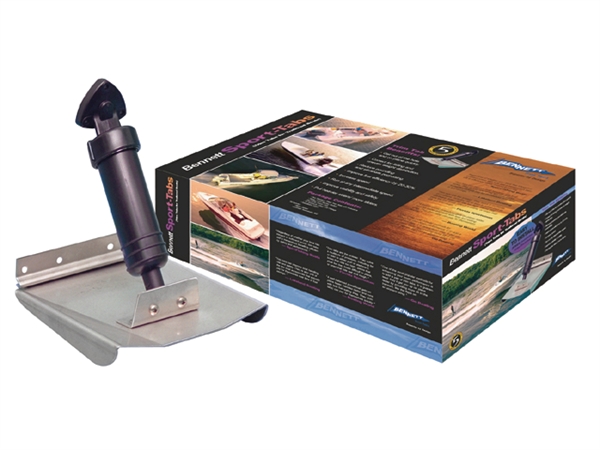

Bennett Sport (M80 / M120) Limited Space Hydraulic Trim Tab Systems – Compact Trim Tabs for Small Boats
The Bennett Sport (M80 / M120) Limited Space Hydraulic Trim Tab Systems are compact hydraulic trim tab kits specifically designed for small boats and installations where transom space is limited. These systems provide improved stability, faster planing, and better control under varying load and sea conditions.
Available in two sizes, the M80 (200×250 mm) and M120 (250×300 mm), both systems deliver up to 30% more lift compared to conventional trim tabs. Each kit is supplied as a complete set with all required components for installation and operation.
Key Features
- Compact hydraulic trim tab systems for small boats
- Designed for limited transom space installations
- Up to 30% more lift compared to standard trim tabs
- Improved planing performance and vessel control
- Better stability and handling in varying conditions
- Electro-hydraulic power unit with oil reservoir
- Stainless steel trim tab plates
- Complete kit for installation
Kit Includes
- 2 × stainless steel trim tabs
- 2 × actuators (Length: 290 mm, Stroke: 58 mm)
- Hydraulic power unit with reservoir
- Hydraulic hoses (6 m)
- Shielded electrical cable (6.5 m)
- Control panel with toggle switches
- Mounting hardware and joints
Available Variants
Model Tab Size Application M80 200 × 250 mm Small boats, compact installations M120 250 × 300 mm Small boats, increased lift requirements
Technical Specifications
- System Type: Hydraulic Trim Tab Kit
- Models: M80, M120
- Tab Sizes: 200×250 mm (M80), 250×300 mm (M120)
- Actuator Length: 290 mm
- Actuator Stroke: 58 mm
- Hose Length: 6 m
- Cable Length: 6.5 m
- Material: Stainless steel trim tabs
- Application: Small boats
-
