Rameh Lubricated Propeller Shaft Packing, per 1 m

ID 682950

$ 16.52

1-2 weeks delivery time

Diameter, mm:

5
6
8
10
11
12.5
14
16
19
22
25

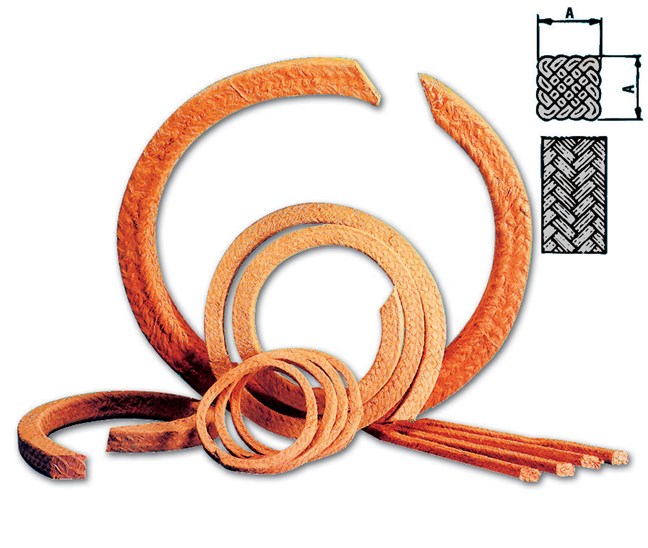

The Rameh lubricated propeller shaft packing is a woven ramie stuffing box packing supplied per 1 meter. Designed for marine and industrial sealing applications, it is suitable for pumps, agitators, mixers, and sealing fluids containing solid particles. It withstands up to 16 bar, pump speeds up to 10 m/s, and temperatures up to 200°C. Available in sizes from 5 mm to 25 mm.

Description
Ask a Question

Rameh Lubricated Propeller Shaft Packing – Ramie Stuffing Box Packing, 5–25 mm, per 1 m

The Rameh lubricated propeller shaft packing is a stuffing box packing made from woven ramie fibres with high-quality lubricant. It is supplied per 1 meter and is designed for marine and industrial sealing applications where durable and serviceable shaft packing is required.

This packing is suitable for pumps, agitators, mixers, and applications where the sealed fluid may contain solid particles. The ramie fibre construction provides resistance to rotting during prolonged water exposure, making it suitable for shaft sealing in marine environments.

Key Features

Woven ramie fibre stuffing box packing
High-quality lubricant / grease impregnation
Supplied per 1 meter
Suitable for marine and industrial sealing duties
Does not rot during prolonged water exposure
Suitable for fluids containing solid particles
Recommended shaft hardness: 45 HRC

Technical Data

Material	Woven ramie fibres with lubricant / grease
Maximum Temperature	200°C
Pressure	Up to 16 bar
Speed for Pumps	Up to 10 m/s
Sales Unit	Per 1 meter

Available Sizes

Size
5 mm
6 mm
8 mm
10 mm
11 mm
12.5 mm
14 mm
16 mm
19 mm
22 mm
25 mm

This packing is intended for traditional stuffing box systems and should be selected according to the required packing cross-section and shaft sealing arrangement.
