ID
1351150
$ 174.75
1-2 weeks delivery time
Size, mm:
- ø30xø62x20
- ø35xø72x23
- ø45xø100x36
- ø55xø120x43
Double-row spherical roller bearings of the 22206–22311 series are designed for applications requiring high radial load capacity and reliable operation under demanding conditions. The range includes bearings with bore diameters from Ø30 mm to Ø55 mm, outer diameters from Ø62 mm to Ø120 mm, and widths from 20 mm to 43 mm depending on the model.
- Description
- Ask a Question
-

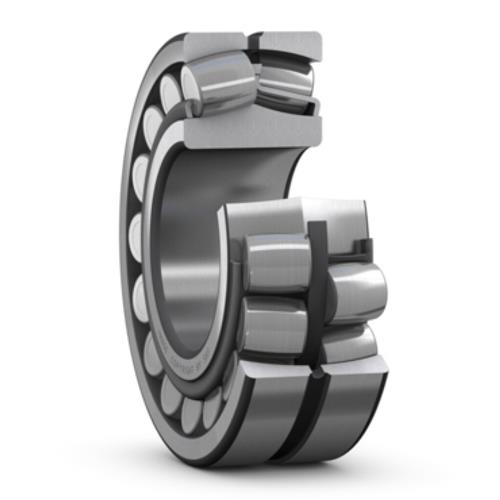

Double-Row Spherical Roller Bearings 22206–22311 Series – Ø30–Ø55 mm Bore
Double-row spherical roller bearings in the 22206–22311 series are designed for applications requiring high load capacity and reliable performance. The bearing design allows operation under demanding conditions while supporting heavy loads.
The range includes multiple sizes with bore diameters from Ø30 mm to Ø55 mm. Each bearing is supplied as 1 piece and identified by its product number and EAN code. Products are supplied under the White Label brand.
Product Specifications
Product Number EAN Code Bore Diameter Outer Diameter Width 22206CCK 8720193059877 30 mm 62 mm 20 mm 22207EK 8720193059884 35 mm 72 mm 23 mm 22309CCKW33 8720193059907 45 mm 100 mm 36 mm 22311EK 8720193059938 55 mm 120 mm 43 mm
Key Features
- Double-row spherical roller bearing design
- Designed for high load capacity
- Suitable for demanding operating conditions
- Available in multiple sizes
- Supplied individually (1 piece)
-
