ID
1351043
$ 370.23
1-2 weeks delivery time
Diameter, mm:
- 35
- 45
The TOR Marine Outer Bearing Housing is a marine stern tube bearing housing designed to support propeller shafts in propulsion systems. Manufactured from corrosion-resistant brass or bronze, the housing ensures durability and stable alignment in demanding marine environments. The range includes TP-35 (shaft Ø35 mm, B 58 mm, D 75 mm, L 145 mm) and TP-45 (shaft Ø45 mm, B 72 mm, D 95 mm, L 170 mm) models. Each unit is supplied as one piece and includes defined mounting dimensions according to the technical drawing.
- Description
- Ask a Question
-

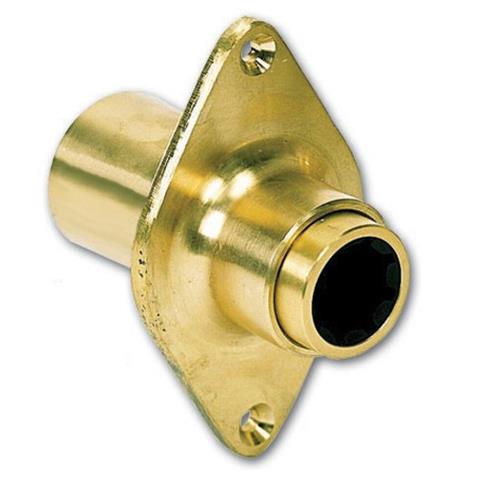

TOR Marine Outer Bearing Housing – Bronze / Brass Stern Tube Bearing Housing for Propeller Shaft (TP-35, TP-45)
TOR Marine Outer Bearing Housings are designed for marine propulsion systems to support propeller shafts and provide secure installation of the outer cutless bearing. Built from corrosion-resistant marine-grade metals, these housings are suitable for harsh saltwater environments and long service life.
The housings are supplied as single-piece units and are engineered with precise mounting dimensions to ensure correct alignment and reliable operation in marine driveline systems.
Key Features
- Outer bearing housing for marine propeller shafts
- Designed for stern tube and propulsion shaft installations
- Corrosion-resistant brass or bronze construction
- Precision mounting dimensions for secure installation
- Suitable for demanding marine environments
- Supplied as single-piece components
Technical Specifications
Model Shaft Diameter B C D E F I L Material EAN TP-35 35 mm 58 mm 48 × 1.5 mm 75 mm 46 mm 8.5 mm 150 mm 145 mm Brass 8055323042857 TP-45 45 mm 72 mm 61 × 2.0 mm 95 mm 50 mm 10.5 mm 160 mm 170 mm Bronze 8055323042871
Applications
- Marine propulsion shaft systems
- Boat and yacht stern tube assemblies
- Installation of outer cutless bearings
- Support and alignment of propeller shafts
-
