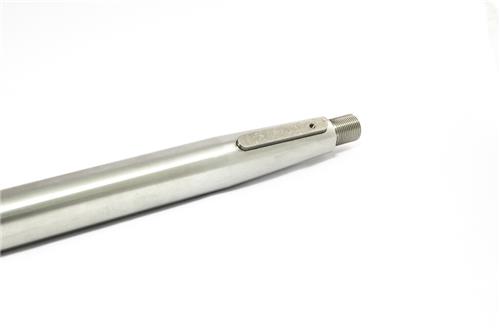

Long-length Exalto stainless steel shaft with Ø40 mm diameter and 3000 mm length, combining an integrated cone and keyway for durable and stable operation in extended mechanical installations.
- Description
- Ask a Question
-
Exalto Shaft 23 AISI Ø40x3000 Cone 112 Including Key
This long-length Exalto shaft is engineered for applications that require extended reach without compromising stability. The stainless steel body, integrated cone, and keyway deliver dependable performance in industrial environments.
Key Features
- High-grade stainless steel shaft
- Extended length for versatile applications
- Integrated cone with accurate machining
- Supplied including key for secure mounting
- Designed for long-term durability
Technical Specifications

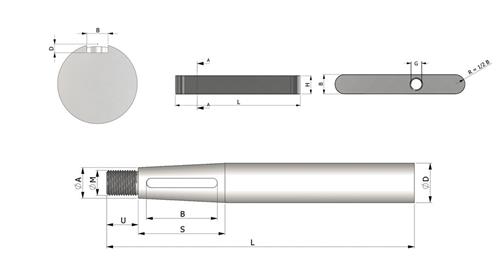

Shaft Diameter Ø40 mm Product Length 3000 mm Cone Length (S) 112 mm Thread M6 Keyway Height (D) 4.5 mm Keyway Length (B) 90 mm Coaster Width (W) 10 mm Drawing Indications A: 28.8 mm, B: 90 mm, D: 4.5 mm, DØ: 40 mm, G: M6, M: M22 x 1.5, S: 112 mm, U: 30 mm, W: 12 mm
Brand: Exaltation (Article code: 23446204030120) (Barcode: 8720193047676)
-
