ID
1344609
$ 2,098.10
1-2 weeks delivery time
-
+
Compact Exalto AISI stainless steel shaft with Ø40 mm diameter and 2000 mm length, designed with an extended cone and keyway to ensure stable torque transfer and consistent industrial performance.
- Description
- Ask a Question
-
Exalto Shaft 23 AISI Ø40x2000 Cone 112 Including Key

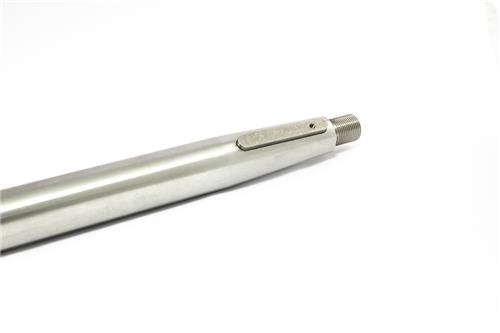

This Exalto stainless steel shaft combines strength and precision in a compact length. The integrated cone and keyway ensure reliable torque transmission, making it ideal for industrial and mechanical installations requiring consistent performance.
Key Features
- Durable AISI stainless steel construction
- Precision cone with extended length
- Includes key for secure assembly
- Optimized shaft diameter for stable operation
- Corrosion-resistant material
Technical Specifications

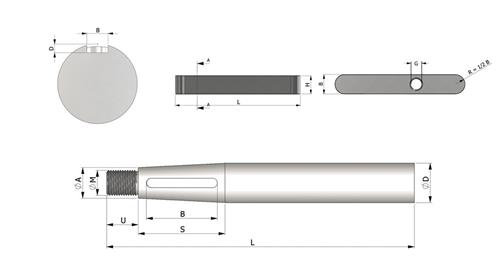

Shaft Diameter Ø40 mm Product Length 2000 mm Cone Length (S) 112 mm Thread M6 Keyway Height (D) 4.5 mm Keyway Length (B) 90 mm Coaster Width (W) 10 mm Drawing Indications A: 28.8 mm, B: 90 mm, D: 4.5 mm, DØ: 40 mm, G: M6, M: M22 x 1.5, S: 112 mm, U: 30 mm, W: 12 mm
Brand: Exaltation (Article code: 23446204020120) (Barcode: 8720193047652)
-
