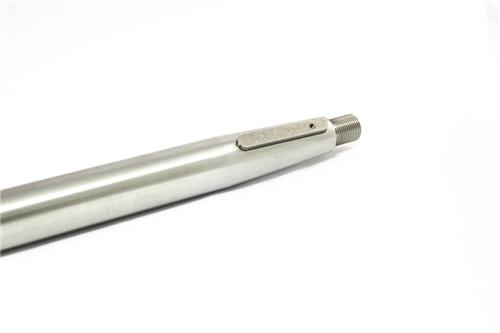

Exalto Shaft 23 AISI Ø35x3000 Cone 85 Including Key
This Exalto shaft is a precision-machined stainless steel shaft designed for reliable mechanical performance. With an AISI stainless steel construction, integrated cone, and keyway, it is suitable for demanding industrial applications where durability, accuracy, and corrosion resistance are essential.
Key Features
- Manufactured from high-quality RVS (stainless steel)
- Integrated cone with precise dimensions
- Supplied including key for secure power transmission
- Accurate shaft diameter for optimal fitting
- Suitable for long-length applications
Technical Specifications

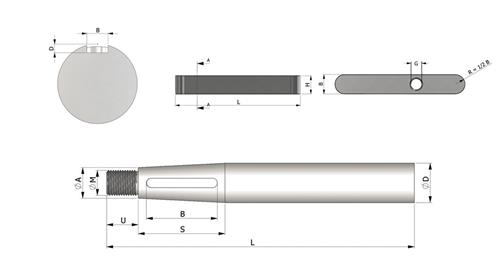

Shaft Diameter Ø35 mm Product Length 3000 mm Cone Length (S) 85 mm Thread M6 Keyway Height (D) 4.5 mm Keyway Length (B) 70 mm Coaster Width (W) 10 mm Drawing Indications A: 26.5 mm, B: 70 mm, D: 4.5 mm, DØ: 35 mm, G: M6, M: M20 x 1.5, S: 85 mm, U: 25 mm, W: 10 mm
Brand: Exaltation (Article code: 23446203530090) (Barcode: 8720193079301)
-
