ID
1377003
$ 7.68
1-2 weeks delivery time
Type:
- Single
- Dual
Item:
- Mini M6
- Maxi M8
- Big M10
- Midi M8
- Midi M8 + M10

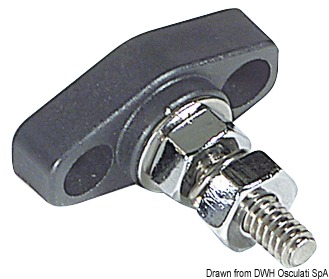

The Osculati High-Amperage Power Post Junction Terminal range is designed for connecting and distributing high-current electrical cables in marine, automotive, and industrial installations. Featuring a nylon/fiberglass base, stainless steel studs, and chromed brass nuts, the series includes single-post and dual-post versions with stud sizes from 6 mm to 10 mm and optional protective covers.
- Description
- Ask a Question
-
Osculati High-Amperage Power Post Junction Terminal – Single and Dual Stud Bus Bar Connections
The Osculati Power Post Junction Terminal series provides a robust solution for joining, distributing, and organizing high-current electrical cables. Designed for demanding marine and automotive applications, these junction terminals feature a reinforced nylon/fiberglass base combined with stainless steel studs and chromed brass nuts for excellent conductivity and corrosion resistance.
The current capacity depends on the connected cable size rather than the terminal itself, making these power posts suitable for a wide range of heavy-duty electrical installations.
Key Features
- Designed for high-amperage electrical systems
- Suitable for cable joining and power distribution
- Nylon/fiberglass insulating base
- Stainless steel studs and hardware
- Chromed brass nuts
- Available in single and dual stud configurations
- Compatible with optional PVC and polycarbonate protective covers
- Suitable for marine, automotive and industrial installations
Available Variations
Osculati Code Version Base Size (mm) Stud Size 14.205.01 Mini 40 x 20 6 mm 14.205.02 Maxi 83 x 44 8 mm 14.205.00 Big 82 x 43 10 mm 14.205.03 Mini Dual 35 x 42 6 mm (2 studs) 14.205.04 Midi Dual 50 x 41 8 mm (2 studs) 14.205.05 Midi-B Dual 50 x 41 8 mm + 10 mm 14.205.06 Big Dual 50 x 41 10 mm (2 studs)
Compatible Protective Covers
Terminal Soft PVC Cover Rigid Polycarbonate Cover 14.205.01 14.987.01 / 14.988.01 — 14.205.02 14.987.02 / 14.988.02 — 14.205.00 14.987.02 / 14.988.02 — 14.205.03 14.987.01 / 14.988.01 14.205.13 14.205.04 14.987.01 / 14.988.01 14.205.14 14.205.05 14.987.01 / 14.988.01 14.205.14 14.205.06 14.987.02 / 14.988.02 14.205.14
Technical Specifications
Brand Osculati Product Type Power Post Junction Terminal Base Material Nylon/Fiberglass Stud Material Stainless Steel Nut Material Chromed Brass Application High-Amperage Cable Connections
Applications
- Battery cable distribution systems
- Marine electrical installations
- DC power distribution panels
- Inverter and charger connections
- Automotive and industrial power systems
Sold individually in the selected version.
-
