The Osculati 14.800.xx series includes pre-insulated ring terminals with heat-shrink tubing for waterproof electrical connections. Designed for cable sizes from 1.2 to 6 mm², these terminals provide secure crimping and enhanced protection against moisture, making them ideal for marine and automotive electrical installations.
- Description
- Ask a Question
-
Osculati 14.800.xx – Heat-Shrink Waterproof Ring Terminals for 1.2-6 mm² Cables
The Osculati 14.800.xx series consists of pre-insulated ring terminals fitted with heat-shrink insulation for reliable waterproof electrical connections. Designed for marine, automotive, and industrial environments, these terminals provide secure cable termination and additional protection against moisture and corrosion.
Key Features
- Ring terminals with integrated heat-shrink insulation
- Waterproof connection design
- Suitable for marine and outdoor electrical installations
- Provides additional protection against moisture and corrosion
- Available for cable sizes from 1.2 mm² to 6 mm²
- Multiple stud-hole sizes available
Available Variations

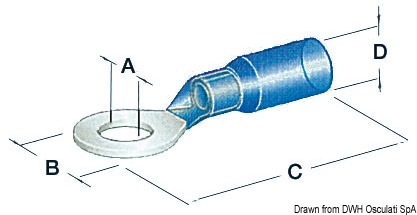

Osculati Code Hole Size (mm) Cable Size (mm²) Length C (mm) 14.800.01 4.3 1.2-2.5 28 14.800.02 5.3 1.2-2.5 29 14.800.03 5.3 2.5-6 34 14.800.04 6.4 2.5-6 37
Technical Specifications
Brand Osculati Series 14.800.xx Terminal Type Ring Terminal Insulation Type Heat-Shrink Connection Type Waterproof Cable Range 1.2-6 mm²
Applications
Suitable for battery connections, switch panels, electrical distribution systems, marine wiring, automotive circuits, and any installation requiring a sealed and moisture-resistant ring terminal connection.
-
