Osculati Fully Insulated Faston Connectors, Male & Female, for 1-6 mm² Cables, Pack of 100

ID 1377150

$ 23.20

1-2 weeks delivery time

Type:

1–2.5 mm² Female
1–2.5 mm² Male
2.5–6 mm² Female
2.5–6 mm² Male

Size, mm:

The Osculati Fully Insulated Faston Connectors provide protected push-on electrical connections for marine, automotive and industrial wiring systems. Available in male and female versions for cable sizes from 1 to 6 mm² with 4.7 mm and 6.3 mm terminal widths. Supplied in boxes of 100 pieces.

Description
Ask a Question

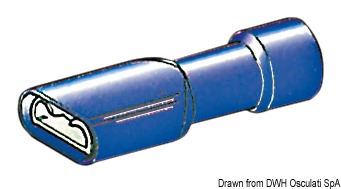

Osculati 14.185.xx / 14.186.xx – Fully Insulated Faston Connectors, Male & Female, 4.7 mm / 6.3 mm, for 1-6 mm² Cables

These fully insulated Faston connectors are designed for secure electrical connections while providing additional protection against accidental contact. The insulated housing covers the metal terminal, making them suitable for marine, automotive and industrial electrical installations.

Key Features

Fully insulated connector design
Available in male and female versions
Suitable for cable sizes from 1 mm² to 6 mm²
Available for 4.7 mm and 6.3 mm Faston terminals
Improved protection against accidental contact
Suitable for marine and automotive electrical systems
Supplied in boxes of 100 pieces

Available Variants

Osculati Code	Type	Cable Size (mm²)	Terminal Size (mm)	Packaging
14.185.54	Female	1 - 2.5	4.7	100 pcs
14.185.55	Female	1 - 2.5	6.3	100 pcs
14.186.06	Female	2.5 - 6	6.3	100 pcs
14.185.65	Male	1 - 2.5	6.3	100 pcs
14.186.24	Male	2.5 - 6	6.3	100 pcs

Technical Specifications

Product Type	Fully Insulated Faston Connector
Connector Types	Male and Female
Cable Range	1 mm² to 6 mm²
Terminal Sizes	4.7 mm and 6.3 mm
Packaging	100 pcs per box
Brand	Osculati

Designed for protected push-on electrical connections where insulation and connection reliability are equally important.
