Osculati Pre-Insulated Faston Blade Connectors, Male & Female, for 1-6 mm² Cables

ID 1377142

$ 15.46

1-2 weeks delivery time

Type:

1–2.5 mm² Female
1–2.5 mm² Male
2.5–6 mm² Female
2.5–6 mm² Male

Size, mm:

Item:

50 pcs
100 pcs

The Osculati Pre-Insulated Faston Blade Connectors provide quick and reliable electrical connections for marine, automotive and industrial wiring systems. Available in male and female versions with blade widths of 4.7 mm, 6.3 mm and 9.5 mm for cable sizes from 1 to 6 mm². Supplied in boxes of 50 or 100 pieces depending on the version.

Description
Ask a Question

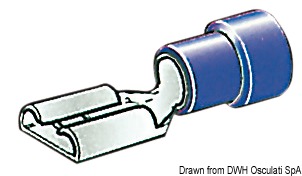

Osculati 14.185.xx / 14.186.xx – Pre-Insulated Faston Blade Connectors, Male & Female, 4.7 mm / 6.3 mm / 9.5 mm, for 1-6 mm² Cables

These pre-insulated Faston blade connectors are designed for fast, secure and vibration-resistant electrical connections. Suitable for marine electrical systems, vehicles, machinery and general low-voltage installations.

Key Features

Pre-insulated connector design
Available in male and female versions
Suitable for cable sizes from 1 mm² to 6 mm²
Available in 4.7 mm, 6.3 mm and 9.5 mm blade sizes
Reliable push-on electrical connection
Suitable for marine, automotive and industrial applications

Available Variants

Osculati Code	Type	Cable Size (mm²)	Blade Width (mm)	Packaging
14.185.45	Female	1 - 2.5	4.7	100 pcs
14.185.46	Male	1 - 2.5	4.7	100 pcs
14.185.50	Female	1 - 2.5	6.3	100 pcs
14.185.60	Male	1 - 2.5	6.3	100 pcs
14.186.11	Female	2.5 - 6	6.3	100 pcs
14.186.20	Male	2.5 - 6	6.3	100 pcs
14.186.30	Female	2.5 - 6	9.5	50 pcs

Technical Specifications

Product Type	Pre-Insulated Faston Blade Connector
Connector Types	Male and Female
Cable Range	1 mm² to 6 mm²
Blade Sizes	4.7 mm, 6.3 mm, 9.5 mm
Packaging	50 or 100 pcs per box depending on model
Brand	Osculati

Designed for professional electrical installations requiring quick-connect terminals with reliable mechanical retention and electrical conductivity.
