ID
1245147
$ 38.67
1-2 weeks delivery time
-
+
The Osculati IP68 panel mount waterproof connector socket is designed for installation in panels, bulkheads and enclosures requiring a secure electrical connection. Compatible with 2, 3 and 4-pole configurations, it supports currents up to 17.5A and cable cross-sections from 0.5 to 1.5 mm². The snap-lock connection system ensures quick installation without tools while maintaining IP68 waterproof protection.
- Description
- Ask a Question
-

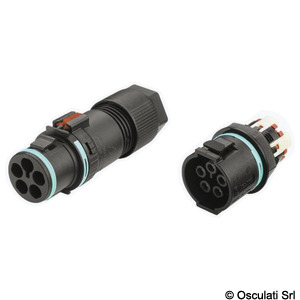

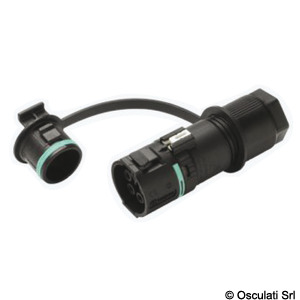

Osculati IP68 Panel Mount Waterproof Connector Socket – 2/3/4 Pole, 17.5A, for Panels and Bulkheads
The Osculati panel mount waterproof connector socket is designed for professional marine and industrial electrical installations requiring a reliable bulkhead or panel-mounted connection point. Featuring IP68 protection, the connector provides complete protection against water and dust ingress while ensuring dependable electrical performance.
The connector supports 2, 3 or 4-pole configurations and is suitable for cable cross-sections from 0.5 to 1.5 mm². Its snap-lock connection system allows fast installation and secure mating without the need for special tools.
Key Features
- IP68 waterproof and dustproof protection
- Designed for panel and bulkhead mounting
- Compatible with 2, 3 and 4-pole configurations
- Maximum current rating: 17.5A
- Snap-lock connection system
- Tool-free installation
- Suitable for cable cross-sections from 0.5 to 1.5 mm²
- Compatible with cable diameters from 7 mm to 13.5 mm
- Suitable for panel thicknesses from 1 to 7 mm
- Compact and robust construction
Available Variant
Osculati Code Poles Current Rating Panel Thickness Cable Cross-Section Cable Diameter Dimensions 14.372.05 2 / 3 / 4 17.5 A 1–7 mm 0.5–1.5 mm² 7–13.5 mm Ø23 × 40 mm
Technical Specifications
Product Type Panel mount waterproof connector socket Protection Rating IP68 Mounting Type Panel / bulkhead mounting Connection Type Snap-lock Available Pole Configurations 2, 3 or 4 poles Maximum Current 17.5 A Panel Thickness 1–7 mm Cable Cross-Section 0.5–1.5 mm² Cable Diameter 7–13.5 mm Dimensions Ø23 × 40 mm
This waterproof panel connector is ideal for marine electronics, navigation systems, lighting circuits, control panels and industrial equipment requiring secure, weatherproof electrical connections through bulkheads or enclosures.
-
