Type:
- Vertical Inline
- 90° Lateral
The Osculati IP67 cable deck gland provides a watertight cable pass-through solution for marine electrical installations. Featuring a fiberglass-reinforced nylon body and AISI 316 stainless steel cap, it allows cables to pass without removing terminal connectors. Available in vertical inline and 90° lateral entry configurations for cable diameters from 3 to 14 mm.
- Description
- Ask a Question
-

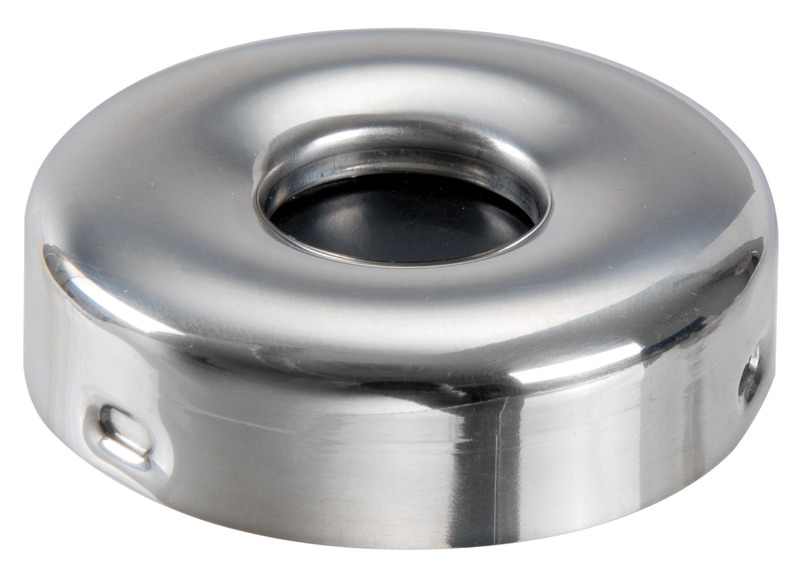

Osculati IP67 Cable Deck Gland – Vertical or 90° Cable Entry, Ø3–14 mm
The Osculati cable deck gland is designed to provide a reliable waterproof cable entry point for boats and yachts. Its innovative design allows electrical cables to pass through the deck without removing pre-installed connectors, simplifying installation and maintenance.
Manufactured with a fiberglass-reinforced nylon body and an AISI 316 stainless steel cover, the gland offers excellent corrosion resistance and long-term durability in harsh marine environments. The IP67-rated construction ensures dependable protection against water ingress.
Key Features
- IP67 watertight protection
- Allows cable routing without removing end connectors
- Fiberglass-reinforced nylon body
- AISI 316 stainless steel cover
- Suitable for marine electrical installations
- Compact low-profile design
- Available in vertical and 90° cable entry versions
Available Variants
Osculati Code Cable Entry Type Base Diameter Overhang Cable Diameter Range 14.186.14 Vertical (Inline) 48 mm 14 mm 3–14 mm 14.186.15 90° Lateral Entry 48 mm 14 mm 3–8 mm
Technical Specifications
Product Type Cable deck gland Protection Rating IP67 Body Material Fiberglass-reinforced nylon Cover Material AISI 316 stainless steel Base Diameter 48 mm Overhang 14 mm Application Watertight deck cable pass-through
The Osculati IP67 cable gland is an ideal solution for routing electrical cables through decks and bulkheads while maintaining a clean appearance and reliable waterproof protection.
-
