ID
1245146
$ 39.28
1-2 weeks delivery time
-
+
The Osculati IP68 snap-lock waterproof connector is a versatile plug and socket solution for marine and industrial electrical installations. Supporting 2, 3 or 4-pole configurations, it is rated up to 17.5A and accepts cable cross-sections from 0.5 to 1.5 mm². The tool-free snap connection and cable gland mounting ensure quick installation and reliable waterproof performance.
- Description
- Ask a Question
-

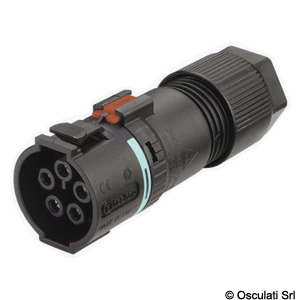

Osculati IP68 Snap-Lock Waterproof Connector – 2/3/4 Pole, 17.5A, Cable Ø 7–13.5 mm
The Osculati snap-lock waterproof connector is designed for dependable electrical connections in demanding marine, automotive and industrial environments. Featuring an IP68 protection rating, the connector protects electrical contacts against water and dust ingress while providing fast and secure connection through its snap-lock mechanism.
The connector supports 2, 3 or 4-pole configurations and is suitable for cable cross-sections from 0.5 to 1.5 mm². Installation is quick and straightforward thanks to the cable gland and snap mounting system, requiring no special tools.
Key Features
- IP68 waterproof and dustproof protection
- Available for 2, 3 or 4-pole configurations
- Snap-lock connection system
- No tools required for assembly
- Maximum current rating of 17.5A
- Suitable for cable cross-sections from 0.5 to 1.5 mm²
- Supports cable diameters from 7 mm to 13.5 mm
- Compact and robust design
- Suitable for marine and outdoor applications
Available Variant
Osculati Code Poles Current Rating Cable Cross-Section Cable Diameter Dimensions 14.371.05 2 / 3 / 4 17.5 A 0.5–1.5 mm² 7–13.5 mm Ø23 × 70 mm
Technical Specifications
Product Type Waterproof plug and socket connector Protection Rating IP68 Connection Type Snap-lock Available Pole Configurations 2, 3 or 4 poles Maximum Current 17.5 A Cable Cross-Section 0.5–1.5 mm² Cable Diameter 7–13.5 mm Dimensions Ø23 × 70 mm Installation Cable gland and snap mounting
This waterproof connector is ideal for marine electronics, lighting systems, pumps, navigation equipment and other applications where a reliable, easy-to-install and environmentally protected electrical connection is required.
-
