ID
1374951
$ 3.93
1-2 weeks delivery time
Size:
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"

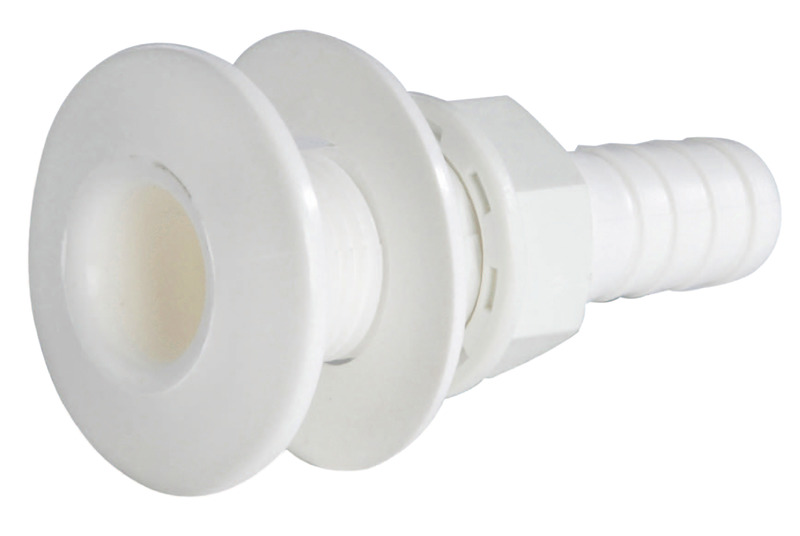

The Osculati Polypropylene Skin Fitting with Hose Adaptor is a white plastic through-hull fitting designed for above-waterline installations. Available with hose adaptor sizes from 15 mm to 51 mm and thread sizes from 1/2" to 2", it features overall lengths from 75 mm to 116 mm and flange diameters from 43 mm to 78 mm. Suitable for marine drainage, ventilation, and water transfer systems where lightweight corrosion-resistant fittings are required.
- Description
- Ask a Question
-

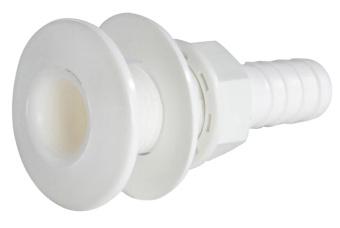

Osculati Polypropylene Skin Fitting with Hose Adaptor – White Plastic, 15-51 mm Hose, 1/2"-2" Thread
The Osculati polypropylene skin fitting with integrated hose adaptor is designed for above-waterline marine applications. Manufactured from white plastic, it combines a through-hull fitting and hose connection in a single component for simple installation.
Key Features
- White polypropylene construction
- Integrated hose adaptor
- Designed for above-waterline installation
- Available in multiple hose and thread sizes
- Suitable for marine plumbing and drainage systems
Technical Specifications
Osculati Code Thread Hose Adaptor (B) A (mm) C (mm) D (mm) 17.322.01 1/2" 15 mm 22 75 43 17.322.02 3/4" 19 mm 26 83 51 17.322.03 1" 25 mm 32 94 62 17.322.05 1" 1/4 30 mm 41 94 67 17.322.04 1" 1/2 38 mm 48 104 78 17.322.06 2" 51 mm 56 116 74
Applications
- Marine drainage systems
- Ventilation outlets
- Water transfer installations
- Above-waterline through-hull connections
-
