ID
1374968
$ 68.46
1-2 weeks delivery time
Size:
- 3/4"
- 1"
- 1 1/2"

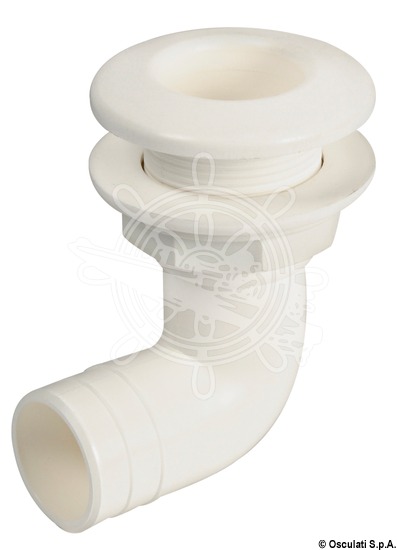

The Osculati 90° Elbow Plastic Skin Fitting is a white plastic through-hull connector supplied complete with a fastening ring. Designed with a 90° outlet for efficient hose routing, it is available in 3/4", 1", and 1-1/2" sizes with hose connections of 20 mm, 25 mm, and 38 mm. Threaded section diameters range from 26 mm to 48 mm, installation hole diameters from 27/30 mm to 50/51 mm, overall heights from 84 mm to 114 mm, and flange diameters from 50 mm to 72 mm.
- Description
- Ask a Question
-
Osculati 90° Elbow Plastic Skin Fitting with Fastening Ring – White Through-Hull Connector, 3/4" to 1-1/2"
The Osculati 90° Elbow Plastic Skin Fitting is manufactured from white plastic and supplied complete with a fastening ring. The 90-degree outlet design allows efficient hose routing where installation space is limited.
This through-hull fitting is available in several sizes and is suitable for marine plumbing, drainage, and ventilation applications requiring a right-angle connection.
Key Features
- White plastic construction
- 90° elbow outlet design
- Supplied complete with fastening ring
- Available in 3/4", 1", and 1-1/2" sizes
- Multiple hose connection diameters available
- Suitable for marine plumbing and drainage systems
Technical Specifications
Osculati Code Type Threaded Part Ø A* (mm) Installation Hole Ø A** (mm) Hose Connection B (mm) Overall Height C (mm) Flange Ø D (mm) 17.396.02 3/4" 26 27/30 20 84 50 17.396.03 1" 32 33/35 25 93 60 17.396.04 1" 1/2 48 50/51 38 114 72
Available Variants
- 3/4" Thread, 20 mm Hose Connection – Osculati 17.396.02
- 1" Thread, 25 mm Hose Connection – Osculati 17.396.03
- 1" 1/2 Thread, 38 mm Hose Connection – Osculati 17.396.04
Notes
- A* = Diameter of threaded section
- A** = Recommended hole diameter to be drilled in the bulkhead
- Installation hole diameter depends on fiberglass thickness
Applications
- Marine drainage systems
- Ventilation outlets
- Water transfer systems
- Through-hull installations requiring a 90° hose outlet
-
