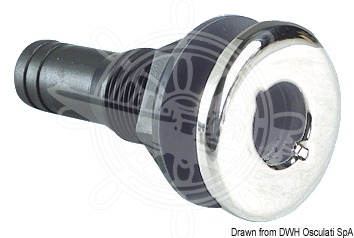

Osculati Black Nylon Skin Fitting with Stainless Steel Flange – 13-51 mm Hose Tail Through-Hull Connector

ID 1374979

$ 10.70

1-2 weeks delivery time

Size:

7/8"x13 mm
7/8"x16 mm
1 1/4"x20 mm
1 1/4"x25 mm
1 1/4"x29/32 mm
2 1/4"x28 mm
2 1/4"x51 mm

The Osculati Black Nylon Skin Fitting combines a black nylon body with a mirror-polished stainless steel visible flange for a durable and professional finish. Available with hose tail sizes from 13 mm (1/2") to 51 mm (2"), thread diameters from 22 mm (7/8") to 57 mm (2-1/4"), body lengths from 82.5 mm to 111 mm, and flange diameters from 38 mm to 75 mm. Suitable for marine plumbing, drainage, and water transfer installations requiring a corrosion-resistant through-hull fitting with an exposed stainless steel finish.

Description
Ask a Question

Osculati Black Nylon Skin Fitting with Stainless Steel Flange – 13-51 mm Hose Tail Through-Hull Connector

The Osculati Black Nylon Skin Fitting is manufactured from black nylon and fitted with a mirror-polished stainless steel visible flange. The combination of corrosion-resistant materials and multiple hose tail options makes this fitting suitable for a wide range of marine plumbing applications.

Available in sizes ranging from 13 mm to 51 mm hose connections, these fittings provide secure through-hull connections while maintaining an attractive stainless steel appearance on visible surfaces.

Key Features

Black nylon body construction
Mirror-polished stainless steel visible flange
Integrated hose tail connection
Multiple hose connection sizes available
Corrosion-resistant materials
Suitable for marine plumbing and drainage systems

Technical Specifications

Osculati Code	Thread Ø E	Hose Tail A	B (mm)	C (mm)	Flange Ø D (mm)
17.327.01	22 mm (7/8")	13 mm (1/2")	32	82.5	38
17.327.02	22 mm (7/8")	16 mm (5/8")	32	82.5	38
17.327.03	33 mm (1"1/4)	20 mm (3/4")	32	82.5	51
17.327.04	33 mm (1"1/4)	25 mm (1")	32	82.5	51
17.327.05	33 mm (1"1/4)	29/32 mm (1"1/4)	32	85.5	57.5
17.327.06	57 mm (2"1/4)	38 mm (1"1/2)	48	111	75
17.327.07	57 mm (2"1/4)	51 mm (2")	48	111	75

Available Variants

13 mm Hose Tail (1/2") – Osculati 17.327.01
16 mm Hose Tail (5/8") – Osculati 17.327.02
20 mm Hose Tail (3/4") – Osculati 17.327.03
25 mm Hose Tail (1") – Osculati 17.327.04
29/32 mm Hose Tail (1"1/4") – Osculati 17.327.05
38 mm Hose Tail (1"1/2") – Osculati 17.327.06
51 mm Hose Tail (2") – Osculati 17.327.07

Applications

Marine drainage systems
Water transfer installations
Ventilation outlets
Through-hull plumbing connections
Installations requiring a visible stainless steel flange
