Osculati AISI 316 Stainless Steel Long Thread Skin Fitting, 1" to 1-1/2" Thread

ID 1374353

$ 52.66

1-2 weeks delivery time

Size:

1"
1 1/4"
1 1/2"

The Osculati 17.422 Series Long Thread Skin Fittings are manufactured from AISI 316 stainless steel and designed for marine through-hull installations requiring an extended threaded section. Featuring mirror-polished ground connections, these fittings are available in 1", 1-1/4", and 1-1/2" thread sizes, with lengths from 107 mm to 112 mm and internal diameters from 25 mm to 38 mm, making them suitable for thicker hull structures and demanding onboard plumbing applications.

Description
Ask a Question

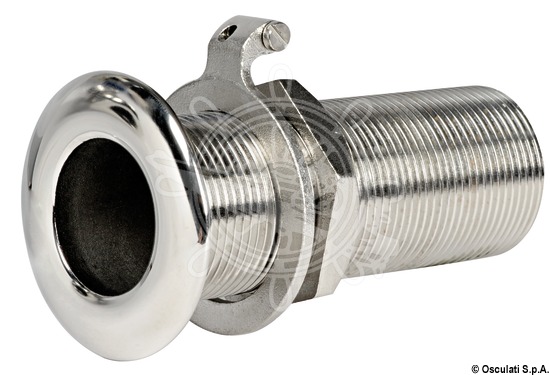

Osculati 17.422 Series – AISI 316 Stainless Steel Long Thread Skin Fitting, 1" to 1-1/2" Thread

The Osculati 17.422 Series Long Thread Skin Fittings are designed for marine through-hull installations where additional thread length is required. Manufactured from corrosion-resistant AISI 316 stainless steel, these fittings provide long-term durability in marine environments while ensuring secure installation through thicker hull sections.

Each fitting features a fully threaded body and mirror-polished ground connections for a professional finish. The range includes three sizes to accommodate various onboard water intake, discharge, and drainage systems.

Key Features
- Manufactured from AISI 316 stainless steel
- Long thread design for thicker hull installations
- Mirror-polished ground connections
- Corrosion-resistant marine-grade construction
- Suitable for through-hull plumbing applications
- Available in multiple thread sizes
Technical Specifications

Osculati Code Thread Size C (mm) D (mm) Ø (mm)

17.422.83 1" 107 55 25

17.422.84 1-1/4" 112 64 35

17.422.85 1-1/2" 112 71 38

Applications
- Marine through-hull installations
- Water intake systems
- Drainage systems
- Bilge discharge connections
- Seawater circulation systems
- General onboard plumbing applications
