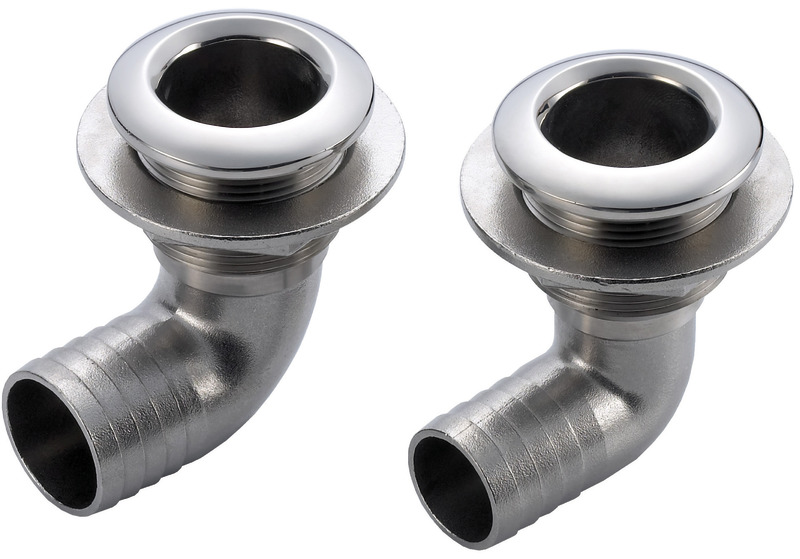

Osculati AISI 316 Stainless Steel 90° Skin Fitting with Hose Connection, 32–51 mm Hose

ID 1374378

$ 97.31

1-2 weeks delivery time

Diameter, mm:

Size:

1 1/4"
1 1/2"

The Osculati 17.526 Series 90° Skin Fittings are manufactured from marine-grade AISI 316 stainless steel and feature an integrated 90-degree hose connection for through-hull installations where space is limited. Designed for a maximum hull thickness of 25 mm, these fittings are available for hose diameters of 32 mm, 38 mm, and 51 mm, with mirror-polished ground connections for a professional marine finish.

Description
Ask a Question

Osculati 17.526 Series – AISI 316 Stainless Steel 90° Skin Fitting with Hose Connection, 32–51 mm Hose

The Osculati 17.526 Series 90° Skin Fittings are designed for marine through-hull applications requiring a right-angle hose connection directly behind the hull. Manufactured from corrosion-resistant AISI 316 stainless steel, these fittings provide a compact installation solution while maintaining excellent durability in demanding marine environments.

The integrated 90° outlet helps reduce hose bending and simplifies plumbing layouts in confined spaces. All models feature mirror-polished ground connections and are suitable for hull thicknesses up to 25 mm.

Key Features
- Manufactured from AISI 316 stainless steel
- Integrated 90° hose connection
- Mirror-polished ground connections
- Suitable for marine through-hull installations
- Designed for installations with limited space behind the hull
- Maximum hull thickness: 25 mm
- Available for 32 mm, 38 mm, and 51 mm hose sizes
Technical Specifications

Osculati Code Thread Size For Hose Ø (mm) Max Hull Thickness (mm)

17.526.04 1-1/2" 32 25

17.526.05 1-1/2" 38 25

17.526.06 1-1/2" 51 25

Applications
- Marine drainage systems
- Bilge discharge installations
- Cockpit drain systems
- Livewell and washdown plumbing
- Seawater circulation systems
- Through-hull installations with limited internal clearance
