Osculati AISI 316 Stainless Steel Skin Fitting with Rubber Check Valve, 1-1/2" to 2"

ID 1374382

$ 81.48

1-2 weeks delivery time

Size:

1 1/2"
2"

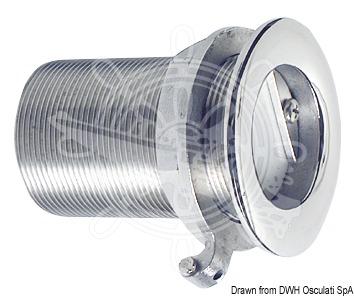

The Osculati 17.319 Series Skin Fittings are manufactured from mirror-polished AISI 316 stainless steel and feature an integrated rubber check valve to help prevent backflow through the hull. Designed for marine drainage and discharge systems, these fittings are available in 1-1/2" and 2" thread sizes, with net passage diameters of 35 mm and 42 mm and lengths under the head of 78 mm and 100 mm respectively.

Description
Ask a Question

Osculati 17.319 Series – AISI 316 Stainless Steel Skin Fitting with Rubber Check Valve, 1-1/2" to 2"

The Osculati 17.319 Series Skin Fittings are designed for marine through-hull installations requiring backflow prevention. Manufactured from mirror-polished AISI 316 stainless steel, these fittings incorporate a rubber check valve that helps prevent water from flowing back into the system.

The robust stainless steel construction provides excellent corrosion resistance in marine environments, while the integrated valve design makes these fittings suitable for drainage and discharge applications where one-way flow is required.

Key Features
- Manufactured from AISI 316 stainless steel
- Mirror-polished finish
- Integrated rubber check valve
- Ground connection design
- Helps prevent backflow through the hull
- Suitable for marine drainage and discharge systems
- Available in 1-1/2" and 2" thread sizes
Technical Specifications

Osculati Code Thread Size Length Under Head (mm) Net Passage Ø (mm)

17.319.30 1-1/2" 78 35

17.319.31 2" 100 42

Applications
- Marine drainage systems
- Cockpit drain outlets
- Bilge discharge systems
- Wastewater discharge installations
- Applications requiring backflow prevention
- General marine through-hull drainage systems
