ID
1366144
$ 15.96
1-2 weeks delivery time
Size, mm:
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"

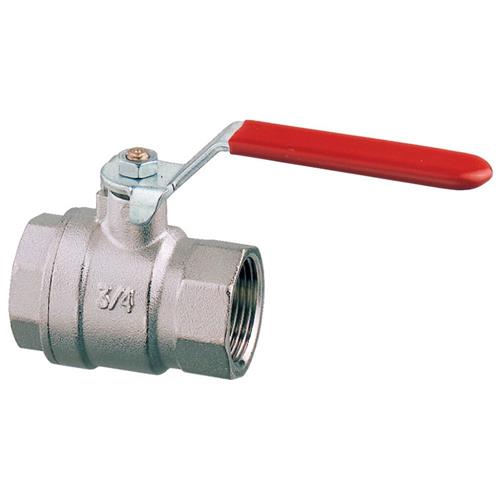

The Guidi 1560 is a lever-operated ball valve with full flow design, made of nickel-plated brass for enhanced corrosion resistance. It features female BSPP threaded connections (ISO 228/1) and ensures minimal pressure loss in marine piping systems. Available in sizes from 1/2" to 3".
- Description
- Ask a Question
-
Guidi 1560.120004–1560.120011 – Lever Ball Valve F-F, Full Flow, Nickel-Plated Brass, BSPP
The Guidi 1560 ball valve is designed for reliable shut-off and flow control in marine systems. With a full flow (full bore) design, it allows maximum fluid passage with minimal pressure loss, making it ideal for high-efficiency installations.
Manufactured from nickel-plated brass, the valve offers excellent resistance to corrosion and long service life in marine environments. The BSPP female threaded connections (ISO 228/1) ensure compatibility with standard marine piping systems.
The lever handle provides quick and easy operation, allowing precise control of flow in onboard water and fluid systems.
Key Features
- Type: Ball valve (F-F)
- Flow type: Full flow (full bore)
- Material: Nickel-plated brass
- Thread standard: BSPP (ISO 228/1)
- Lever-operated for quick control
Available Variants
Model Thread Size 1560.120004 1/2" 1560.120005 3/4" 1560.120006 1" 1560.120007 1 1/4" 1560.120008 1 1/2" 1560.120009 2" 1560.120010 2 1/2" 1560.120011 3"
Applications
- Marine piping systems
- Water and fluid shut-off
- Engine room installations
-
