ID
1366135
$ 69.32
1-2 weeks delivery time
Size, mm:
- 1/4"
- 3/8"
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"

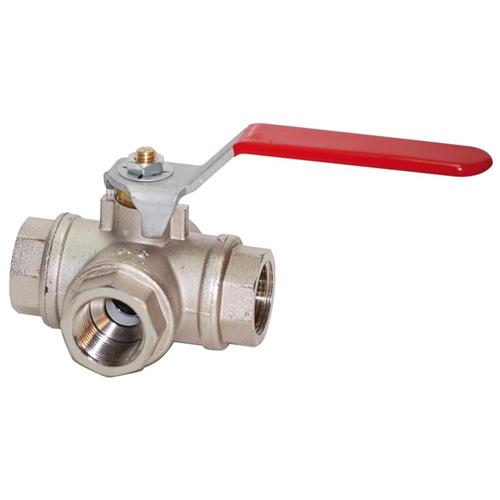

The Guidi 1552 is a 3-way ball valve with L-port flow configuration, made of nickel-plated brass for enhanced corrosion resistance. It features female BSPP threaded connections (ISO 228/1) and PN32 pressure rating, designed for flow diversion in marine systems. Available in sizes from 1/4" to 2".
- Description
- Ask a Question
-
Guidi 1552.120002–1552.120009 – 3-Way Ball Valve FFF, PN32, L-Port, Nickel-Plated Brass, BSPP
The Guidi 1552 three-way ball valve is designed for controlled flow diversion in marine piping systems. Featuring an L-port configuration, it allows switching between two flow directions, making it ideal for directional control applications.
Manufactured from nickel-plated brass, this valve provides enhanced corrosion resistance and long-term durability in marine environments. BSPP female threaded connections (ISO 228/1) ensure compatibility with standard installations.
With a PN32 pressure rating, the valve is suitable for demanding marine conditions. The lever handle allows quick and precise control of the flow path.
Key Features
- Type: 3-way ball valve (FFF)
- Flow configuration: L-port
- Material: Nickel-plated brass
- Pressure rating: PN32
- Thread standard: BSPP (ISO 228/1)
Available Variants
Model Thread Size 1552.120002 1/4" 1552.120003 3/8" 1552.120004 1/2" 1552.120005 3/4" 1552.120006 1" 1552.120007 1 1/4" 1552.120008 1 1/2" 1552.120009 2"
Applications
- Flow direction control systems
- Marine piping installations
- Water and fluid distribution systems
-
